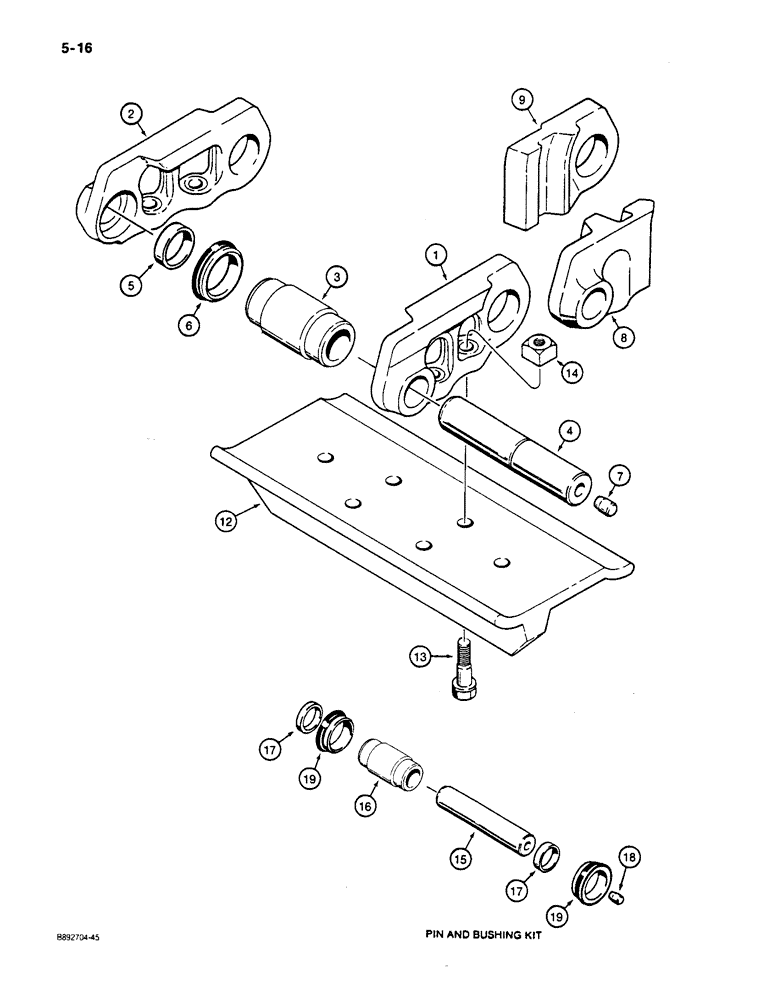

Запчасти Case 650 (5-16) - CASE LUBRICATED TRACK CHAIN, WITH SPLIT MASTER LINKS (11) - TRACKS/STEERING

R57090

CHAIN (CE)

CHAIN ASSEMBLY - track, 36 unit, Includes: Ref. 1 - 14

2шт.

1

R56490

LINK

- track, right-hand

35шт.

2

R56489

LINK

- track, left-hand

35шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

- track pin

36шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

- track

36шт.

5

R51132

SPACER

- seal

72шт.

6

R50830

OIL SEAL

- track pin

72шт.

7

R50441

PLUG

- track pin

36шт.

R56592

LINK ASSY.

LINK ASSEMBLY - master, right-hand, Includes: Ref. 8 anfd 9

1шт.

8

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over bushing on inside of regular track link, right-hand

1шт.

R56591

LINK ASSY.

LINK ASSEMBLY - master, left-hand, not shown, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

11

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

12

REF

INSTRUCTION

SHOE - track, see figure 5-20 for track shoe options

72шт.

13

D48004

FLANGE BOLT

BOLT - hex, special

288шт.

14

R52904

NUT

- square, special, not used on master link bolts

280шт.

R56024

SET

KIT - pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 15 - 20

1шт.

15

R51131

PIN,33.48mm OD x 183.5mm L

- track, pin and bushing kit

76шт.

16

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

- track pin kit

76шт.

17

R51132

SPACER

- seal, pin and bushing kit

152шт.

18

R50441

PLUG

- track pin and bushing kit

76шт.

19

R50830

OIL SEAL

- track pin and bushing kit

152шт.

20

345-140

SEALANT

ADHESIVE - gasket, Scotch Grip No. 847, 1 pint, for link pin bores, not shown, bushing kit

1шт.
