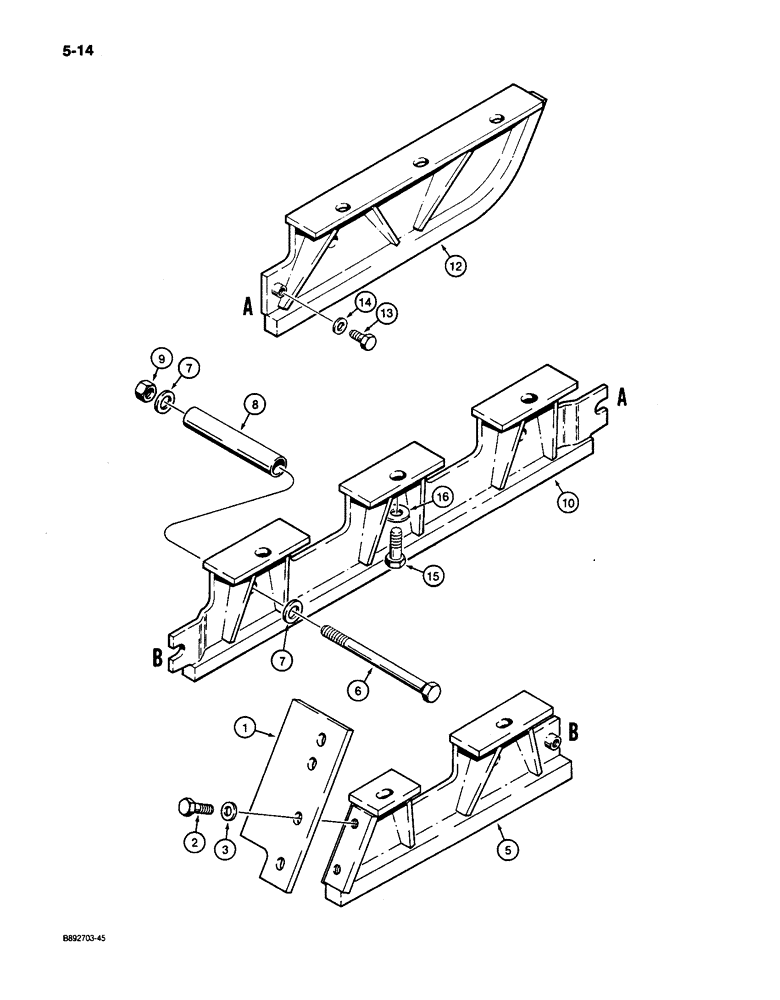

Запчасти Case 650 (5-14) - TRACK GUARDS (11) - TRACKS/STEERING

1

R56637

COVER

GUARD - rear, sprocket

4шт.

2

113-2628

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

BOLT, Locking, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

3

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

16шт.

4

R56633

GUARD

- track, rear, left-hand, both tracks, not shown

2шт.

5

R56646

GUARD

- track, rear, right-hand, both tracks

2шт.

6

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

10шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

20шт.

8

D35698

SPACER

- track guards

10шт.

9

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

10шт.

10

R57100

GUARD

- track, center

4шт.

11

R56620

GUARD

- track, front, left-hand, both tracks, not shown

2шт.

12

R56629

GUARD

- track, front, right-hand

2шт.

13

113-2442

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5

8шт.

14

D64050

WASHER

- flat, 1/2 inch, hardened

8шт.

15

113-2704

LOCK BOLT,Locking, 3/4"-10 x 1 1/2", G5, Full Thd

BOLT, Locking, 3/4-10 x 1 1/2", G5, Full Thd

32шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

32шт.
