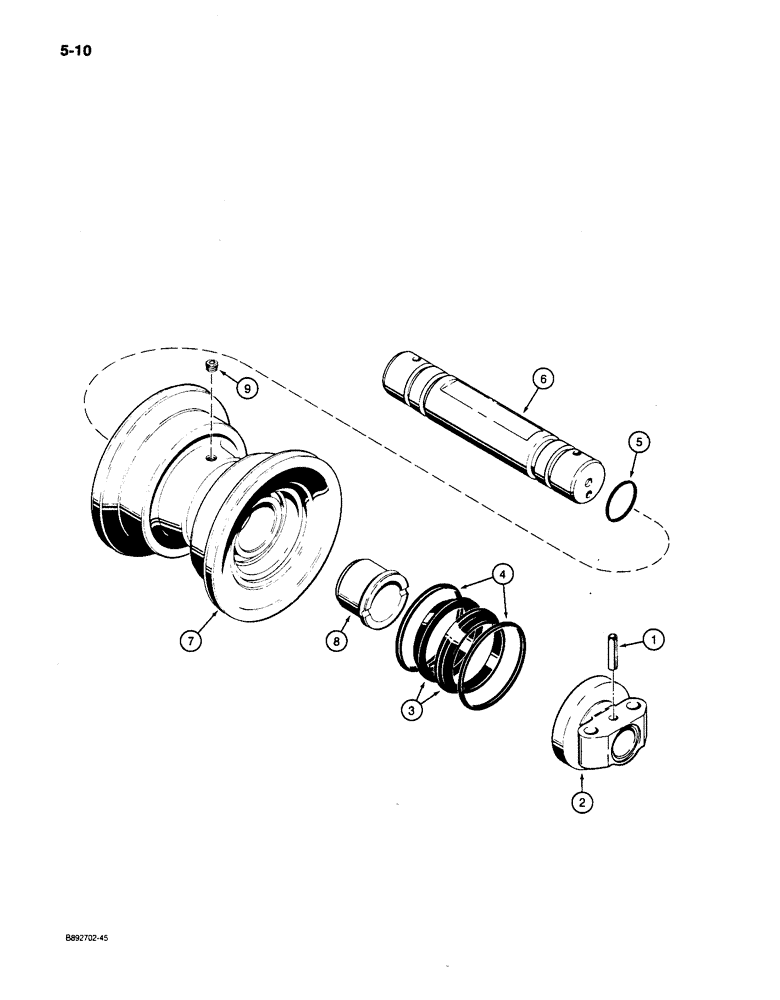

Запчасти Case 650 (5-10) - TRACK ROLLER ASSEMBLY (11) - TRACKS/STEERING

R56593

SHIFTER ROLLER

ROLLER ASSEMBLY - track, Includes: Ref. 1 - 9

10шт.

1

R33563

ROLL PIN

PIN - roll, bracket retaining

2шт.

2

R33560

BUSHING

BRACKET - track roller mounting

2шт.

S113075

SEAL

- face, track roller, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

- face seal

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft

2шт.

6

R33561

SHAFT

- roller

1шт.

R56594

HUB ASSY.

HUB ASSEMBLY - track roller, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - track roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- hub

2шт.

9

R33557

PLUG

- track roller

1шт.
