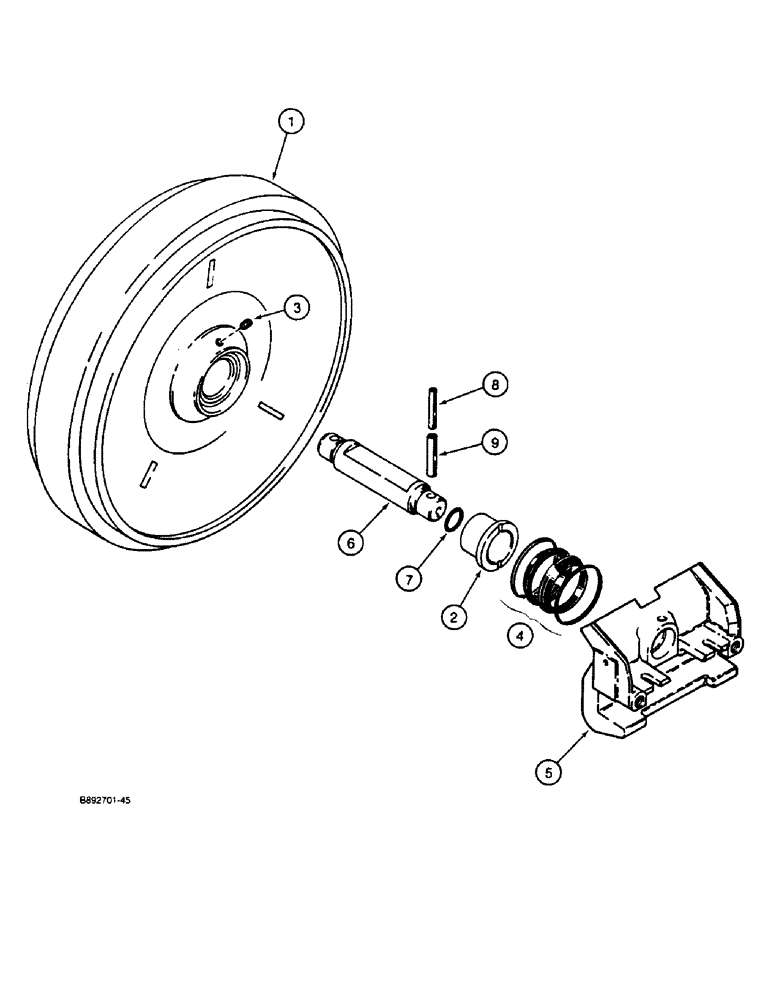

Запчасти Case 650 (5-08) - IDLER ASSEMBLY (11) - TRACKS/STEERING

R55677

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 9

2шт.

R52600

WHEEL

HUB ASSEMBLY - idler, with bushings, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - idler

1шт.

2

S105797

BUSHING

- idler hub

2шт.

3

R33557

PLUG

- idler assembly

1шт.

4

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL ASSEMBLY - face, includes two metal rings and two rubber seals

2шт.

5

R55675

SUPPORT

BRACKET - idler assembly

2шт.

6

R55676

SHAFT

- idler assembly

1шт.

7

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

- 1-1/2 x 1-3/4 inch, class 5

2шт.

8

R53580

ROLL PIN

PIN, ROLL, Inner, shaft retaining

2шт.

9

R53579

ROLL PIN

PIN, ROLL, outer, shaft retaining

2шт.
