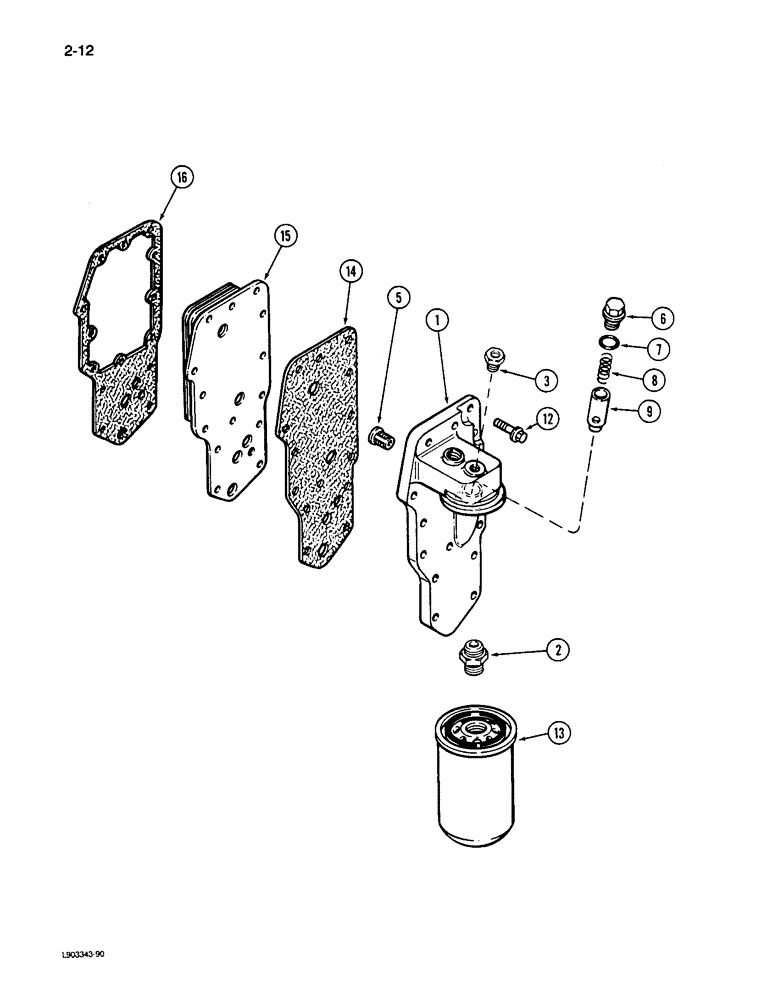

Запчасти Case 650 (2-12) - OIL FILTER AND COOLER, 4T-390 ENGINE (02) - ENGINE

1

J915243

FILTER COVER

HEAD ASSEMBLY - filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

6

J915787

PLUG

- pipe

1шт.

7

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

8

J903261

SPRING

- compression

1шт.

9

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

12

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, 8 mm - 1.25 x 35 mm

14шт.

13

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - lube oil (Cartridge)

1шт.

14

J912532

GASKET

- filter head

1шт.

15

J904320

COOLER

- oil

1шт.

16

J914387

GASKET

- cooler core

1шт.
