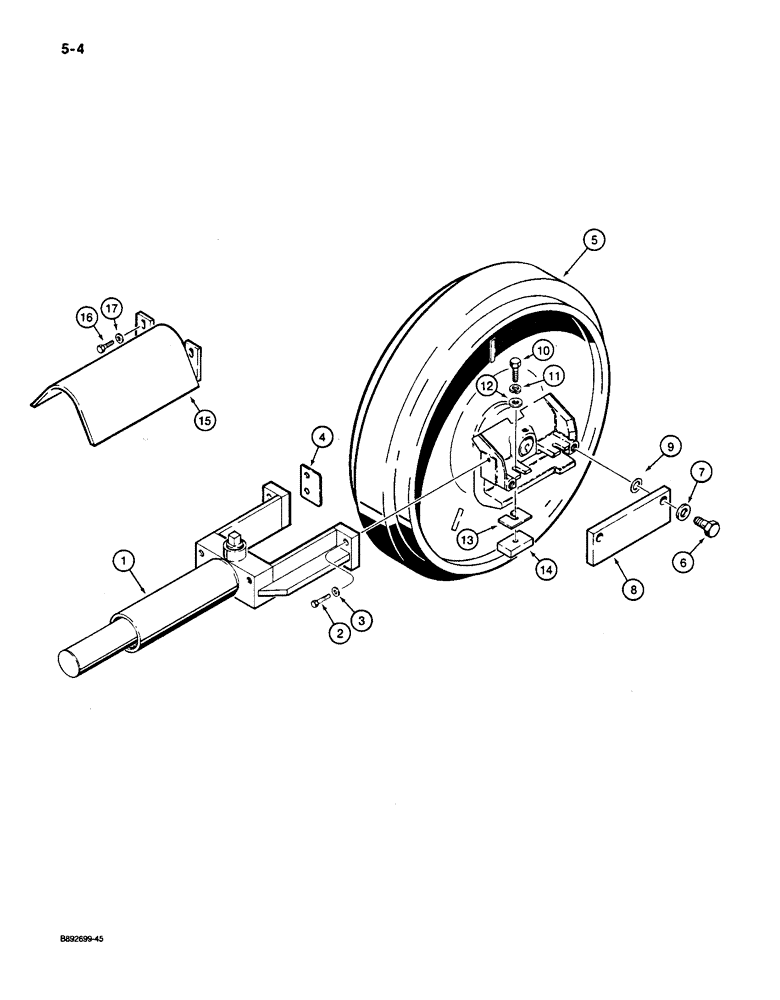

Запчасти Case 650 (5-04) - TRACK ADJUSTER ASSEMBLY AND IDLER MOUNTING (11) - TRACKS/STEERING

1

R57098

SADDLE ASSY.

ADJUSTER ASSEMBLY - track, parts list Figure 5-6

2шт.

Disregard the note on #1 to see Figure 5-6. That is a different adjuster. See quality comments for breakdown

1шт.

2

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

3

R24323

WASHER

- flat, special, hardened

4шт.

4

R37875

SHIM,0.813mm Thk

Track adjuster 0.813mm Thk

1шт.

5

R55677

FRONT IDLER

IDLER ASSEMBLY - track, parts list Figure 5-8

2шт.

6

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened

8шт.

8

R45570

PLATE

- guide, idler

4шт.

9

D35268

SHIM,1/32" Thk

Guide plate 1/32" Thk

1шт.

10

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Use under Ref. 10 bolt head if Ref. 13 shim is not used 1/2"

1шт.

12

R24323

WASHER

- flat, 13.5 x 25 x 4.5 mm, hardened

8шт.

13

R45569

SHIM

- idler spacer, if used

1шт.

14

R45568

BLOCK

SPACER - idler, above track frame

8шт.

15

R57604

GUARD

- track adjuster

2шт.

16

113-2442

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5, Track adjuster guard

4шт.

17

R24323

WASHER

- flat, 13.5 x 25 x 4.5 mm, hardened, track adjuster guard

4шт.
