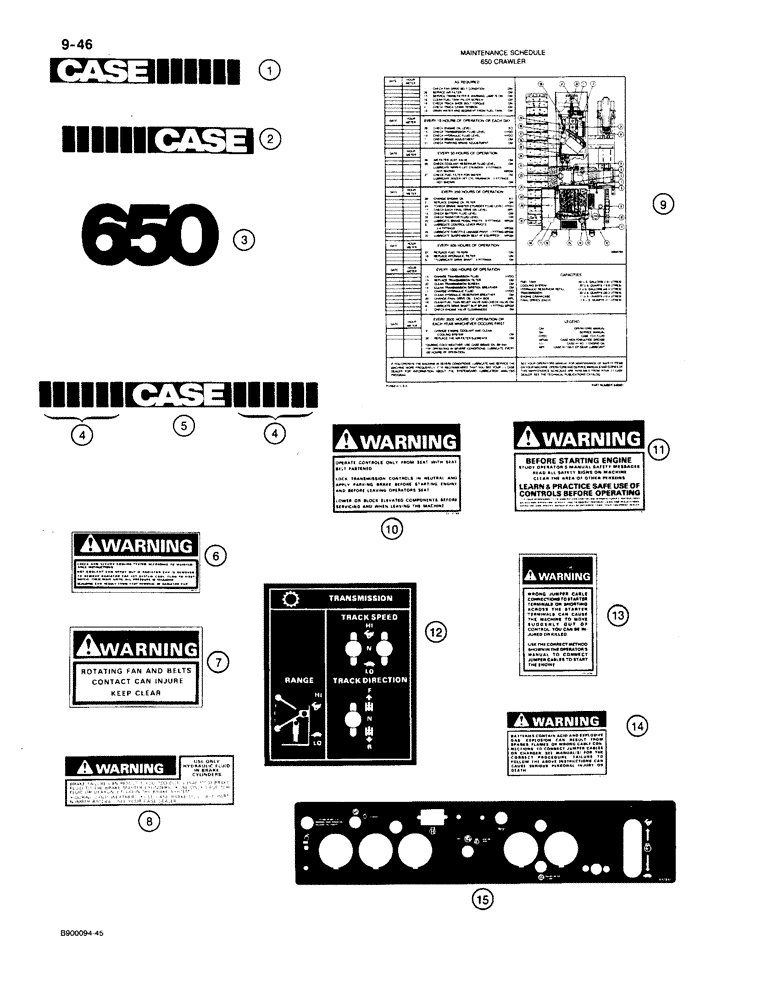

Запчасти Case 650 (9-46) - DECALS (09) - CHASSIS/ATTACHMENTS

R100099

DECAL

KIT - decals, also includes Refs. on Figure 9-48, Includes: Ref. 1 - 15

1шт.

1

R48496

DECAL

- Case, with treads to the right

1шт.

2

R48495

DECAL

- Case, with treads to the left

1шт.

3

R56974

DECAL

- 650

2шт.

4

R48487

DECAL

- treads

2шт.

5

R48489

DECAL

- Case, used on rear cover with Ref. 4 treads

1шт.

6

321-6672

DECAL

- Warning, check and service cooling system

1шт.

7

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

8

321-6957

DECAL

- Warning, use only hydraulilc fluid in brake cylinders

1шт.

9

8-80901

DECAL

- Master Maintenance Schedule

1шт.

See your local authorized Case dealer for ordering information, or this decal may be ordered directly from CdS at 2525 West Hampton Ave., Milwaukee, WI 53209-0359.

1шт.

10

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

11

321-3705

DECAL

- Warning, before starting engine

1шт.

12

R56877

DECAL

- Transmission, Range, Track Direction, Track Speed

1шт.

13

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals, located on plate below starter

1шт.

14

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2шт.

15

R56978

DECAL

- instrument panel

1шт.

321-7030

WARNING DECAL

"Do Not Jump..."

1шт.
