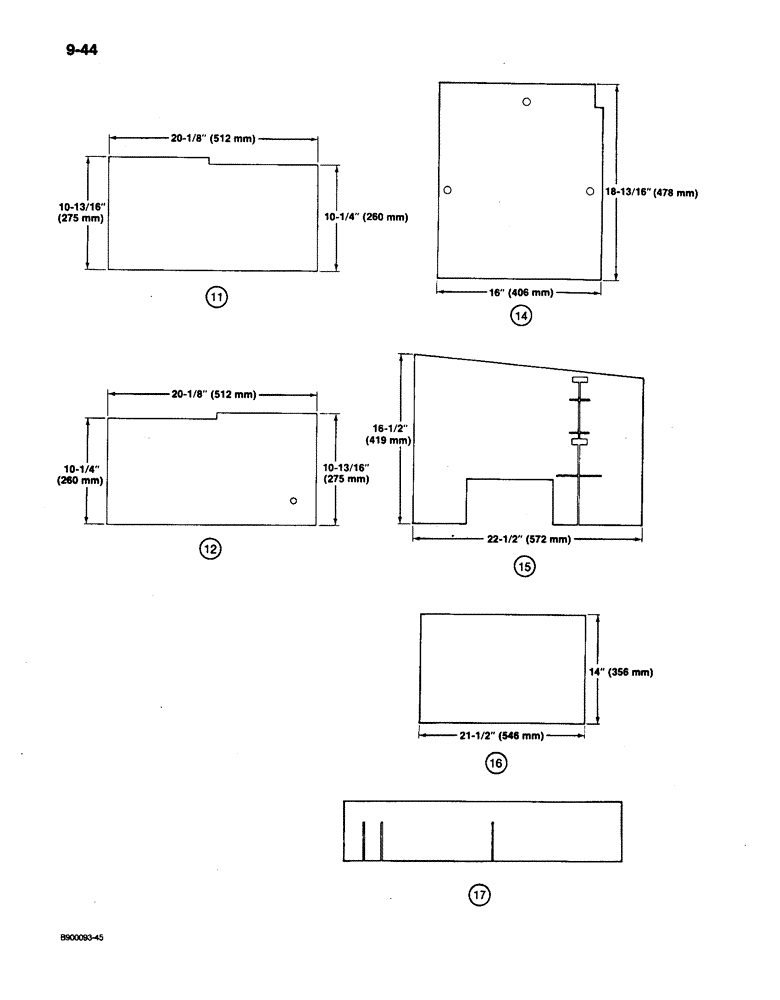

Запчасти Case 650 (9-44) - NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

11

REF

INSTRUCTION

PAD - left-hand floor plate, cut from R30870

1шт.

12

REF

INSTRUCTION

PAD - right-hand floor plate, cut from R30870

1шт.

14

REF

INSTRUCTION

PAD - step plates, cut from R30870

2шт.

15

REF

INSTRUCTION

PAD - fuel tank, front, cut from R30870

1шт.

16

REF

INSTRUCTION

PAD - fuel tank, right-hand side, cut from R30870

1шт.

17

R34157

NOISE PROTECTION

PAD - on plate behind instrument panel

1шт.

R30870

PAD

- bulk, 54 (1372 mm) x 72 (1829 mm) x 1 inch (25 mm)

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
