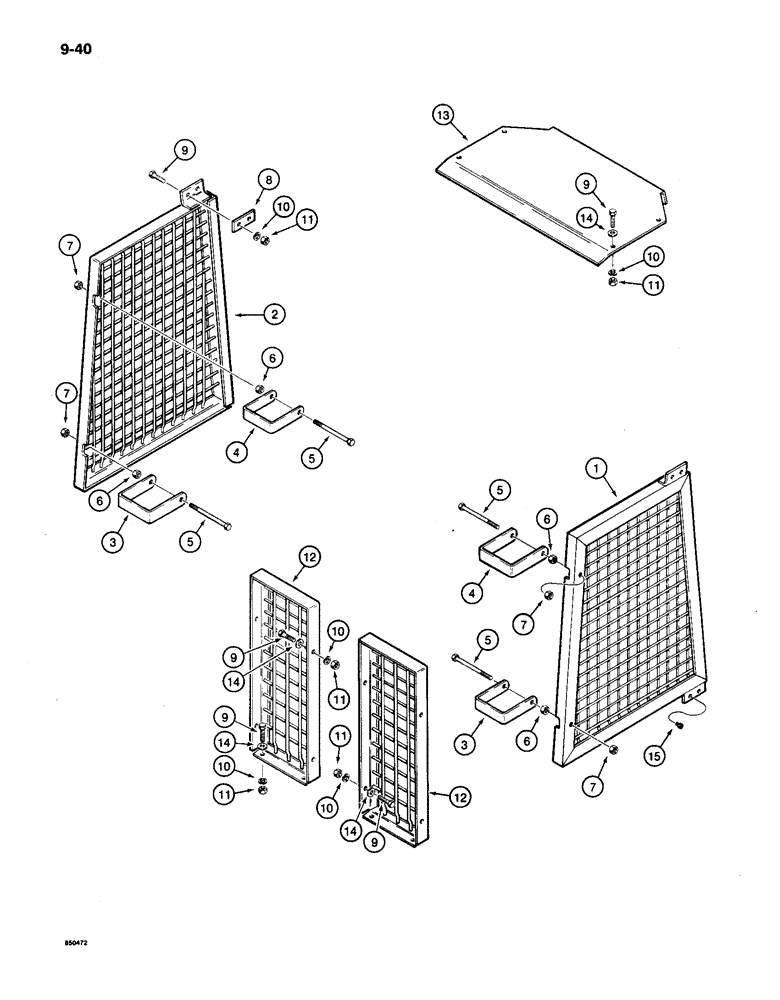

Запчасти Case 650 (9-40) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (09) - CHASSIS/ATTACHMENTS

1

R50420

SCREEN

- side, right-hand

1шт.

2

R50419

SCREEN

- side, left-hand

1шт.

3

F43755

CLAMP

- screen, lower rear

2шт.

4

F44447

CLAMP

- screen, upper rear

2шт.

5

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

8

F44446

NOZZLE HOLDER

RETAINER - screen, upper, front

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

14шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

14шт.

12

F96631

SCREEN

- front

2шт.

13

F44448

CABLE EXTENSION

EXTENSION - canopy

1шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

10шт.

15

R38089

CUSHION ASSY.

BUMPER - rubber, side screens, lower

4шт.
