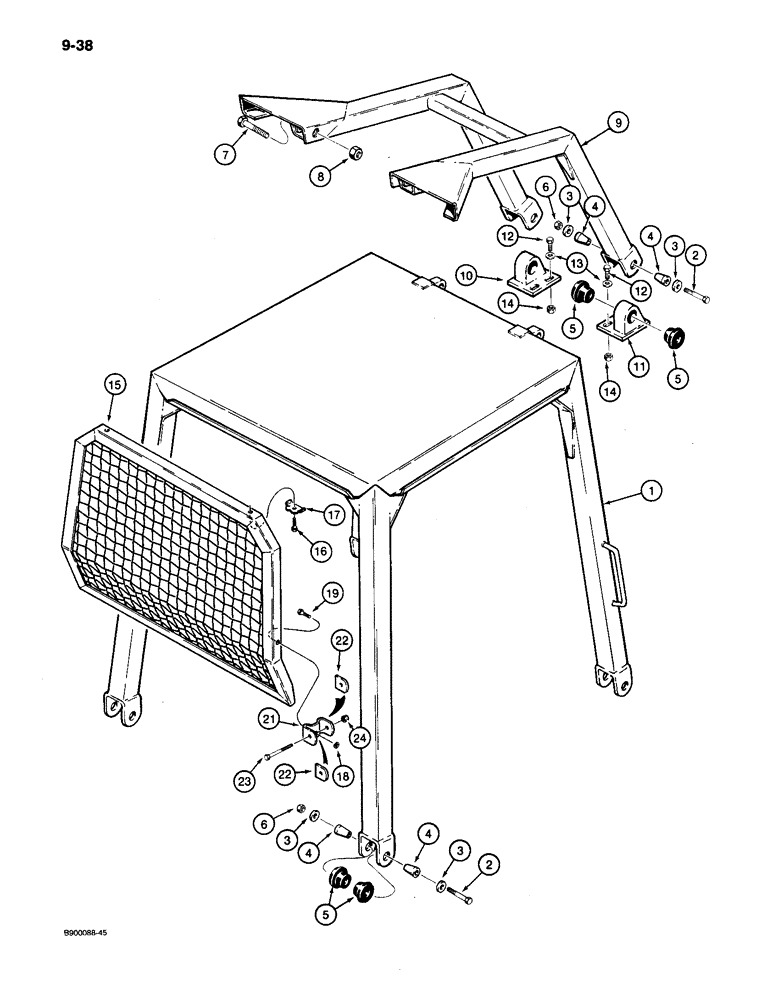

Запчасти Case 650 (9-38) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY AND BRUSH GUARDS (09) - CHASSIS/ATTACHMENTS

1

R58394

ARCH

CANOPY - ROPS, order from Machinery Price List

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

6шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4 inch, hardened

12шт.

4

F44212

MOUNTING PARTS

INSULATOR - rubber, ROPS mounting

12шт.

5

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

12шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

7

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

2шт.

8

131-380

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1 inch - 8 NC

2шт.

9

R57170

PROTECTOR

GUARD - brush

1шт.

10

F93983

BRACKET

- brush guard mounting, left-hand

1шт.

11

F93982

BRACKET

- brush guard mounting, right-hand

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

4шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

15

R48510

BAFFLE

SCREEN - rear

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

17

R38226

LOCK WASHER

RETAINER - screen, upper

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

R56543

CLAMP

- screen mouting

2шт.

22

R40074

CUSHION ASSY.

INSULATOR - rubber, screen mounting

4шт.

23

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

- hex, 1/2 NC x 5-1/4 inch

2шт.

24

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.
