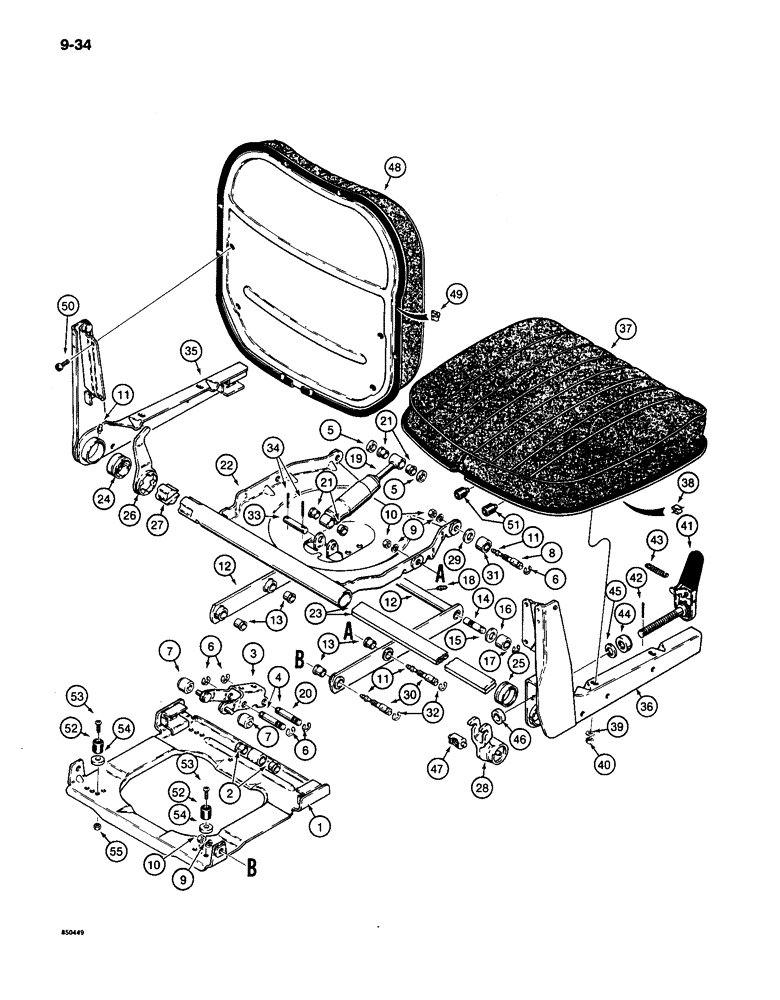

Запчасти Case 650 (9-34) - SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

R49089

SEAT

ASSEMBLY - suspension, for mounting parts see Figure 9-32, Includes: Ref. 1 - 52

1шт.

D74519

BASE

SUPPORT ASSEMBLY - seat, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - seat, serial number plate attached

1шт.

2

D64843

FLANGED BEARING,0.508" ID x 0.753" OD x 0.562"

BUSHING - flanged

2шт.

D64853

LEVER

ASSEMBLY - shock absorber, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - shock absorber

1шт.

4

D64854

SHAFT

- shock absorber lever, included with D64855 shock absorber assembly, see Ref. 20 below

2шт.

5

195-2066

WASHER,33/64" x 7/8" x .180"

- flat, 33/64 x 7/8 x 3/16 inch

2шт.

6

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shaft #50, .392" Dia, E-Type

6шт.

7

D64864

ROLLER

- nylon

2шт.

8

D66298

STUD

- base, seat adjustment

2шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

11

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 25/64 inch long

8шт.

D64844

LEVER

BRACE ASSEMBLY - seat support to adjustment base, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BRACE - adjustment

1шт.

13

D64845

FLANGED BEARING,0.504" ID x 0.763" OD x 0.687"

BUSHING - flanged

4шт.

14

D64846

AXLE PIN

PIN - drive

2шт.

15

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

16

D66297

BEARING ASSY

BEARING - roller

2шт.

17

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , pin #50, .392" Dia, E-Type

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

D64855

SHOCK ABSORBER

SHOCK ASSEMBLY - absorber, seat, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SHOCK - seat

1шт.

20

D64854

SHAFT

- shock absorber hinge

1шт.

21

D64856

FLANGED BEARING,0.503" ID x 0.625" OD x 0.5"

BUSHING - flanged

4шт.

D64847

BASE

ASSEMBLY - seat adjustment, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - seat adjustment

1шт.

23

D64851

BAR

- torsion, set of two

1шт.

24

D64848

HOUSING

- torsion bar, left-hand

1шт.

25

D64849

HOUSING

- torsion bar, right-hand

1шт.

26

D64850

LEVER

INDICATOR - seat level

1шт.

27

D64857

RETAINER

- torsion bar

1шт.

28

D64858

ADJUSTER

- yoke

1шт.

29

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

30

D66298

STUD

- brace, seat adjuster

4шт.

31

D66297

BEARING ASSY

ROLLER - seat adjustment base

2шт.

32

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , stud #50, .392" Dia, E-Type

4шт.

33

D66300

SHAFT

PIN - shock absorber retaining

1шт.

34

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

35

N9780

SUPPORT

- seat cushion, left-hand

1шт.

36

N9781

SUPPORT

- seat cushion, right-hand

1шт.

37

N8683

CUSHION, SEAT

CUSHION - seat, includes clips, Includes: Ref. 38

1шт.

38

N7915

CLIP

- cushion

6шт.

39

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

40

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

4шт.

41

N8420

HANDLE

ASSEMBLY - seat adjustment, Includes: Ref. 42 and 43

1шт.

42

135-936

GROOVED PIN,3/16" x 3/4", Type G

PIN, GROOVED, 3/16" x 3/4", Type G

1шт.

43

N9782

COIL SPRING

SPRING - handle

1шт.

44

D65136

BEARING

- thrust

1шт.

45

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

46

D64863

WASHER

- special

1шт.

47

D64862

PIN

RETAINER - handle, adjuster

1шт.

48

N8684

CUSHION ASSY.

BACKREST - includes clips, Includes: Ref. 49

1шт.

49

N7915

CLIP

- cushion

6шт.

50

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

51

D64867

BUMPER

- front

2шт.

52

N7911

BUMPER

SCREW - machine, pan Phillips, 5/16 NC x 1 inch

2шт.

54

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

2шт.

55

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.
