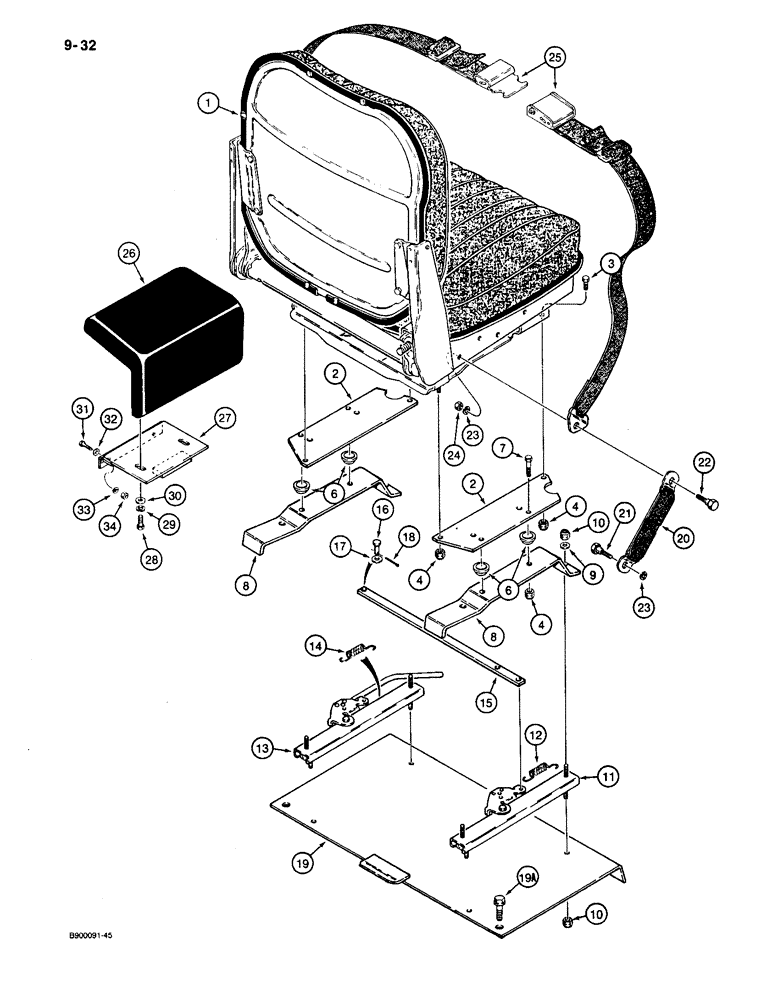

Запчасти Case 650 (9-32) - SUSPENSION SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R49089

SEAT

ASSEMBLY - suspension, parts list Figures 9-34 and 9-36

1шт.

2

R57051

LARGE PLATE

PLATE - seat mounting, bolts to seat assembly

2шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

For the screws and rubber bumpers used in the rear holes, see the suspension seat assembly on Figure 9-34.

1шт.

4

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

6

A45111

SPACER

- cupped, between plate (Ref. 2) and platform (Ref. 8)

4шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

8

R53143

SUPPORT

PLATFORM - angled, attaches to seat adjusters

2шт.

9

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

10

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

11

R52275

ADJUSTER

ASSEMBLY - seat, right-hand, Includes: Ref. 12

1шт.

12

L35503

SPRING

- return, slide

1шт.

Ref. 12 and 14 - (1.83" free length)

1шт.

13

R53178

ADJUSTER

ASSEMBLY - seat, left-hand, with handle, Includes: Ref. 14

1шт.

14

L35503

SPRING

- return, slide

1шт.

15

R53224

BAR

- tie, seat adjusters

1шт.

16

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 inch

2шт.

17

195-101

WASHER,3/16"

WASHSER - flat, 1/4 x 9/16 x 3/64 inch

2шт.

18

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

19

R53232

LARGE PLATE

PLATE - seat mounting, models with or without noise reduction, includes 321-2392 decal, see Figure 9-48 for decal

1шт.

19a

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

20

R45816

SAFETY BELT ,1.80" W

Extension 1.80" W

2шт.

21

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF x 1-1/4 inch, seat belt extension to fuel and hydraulic tanks

2шт.

22

R45855

BOLT

BOLT - shoulder, 7/16 NF x 1-1/2 inch, seat belt and belt extension to seat assembly

2шт.

23

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

24

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

25

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

25

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

26

R48420

ARMREST

- cushion

2шт.

27

R34710

SUPPORT

PLATE - hinged, armrest mounting bolts to bracket on fuel and hydraulic tanks

2шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.
