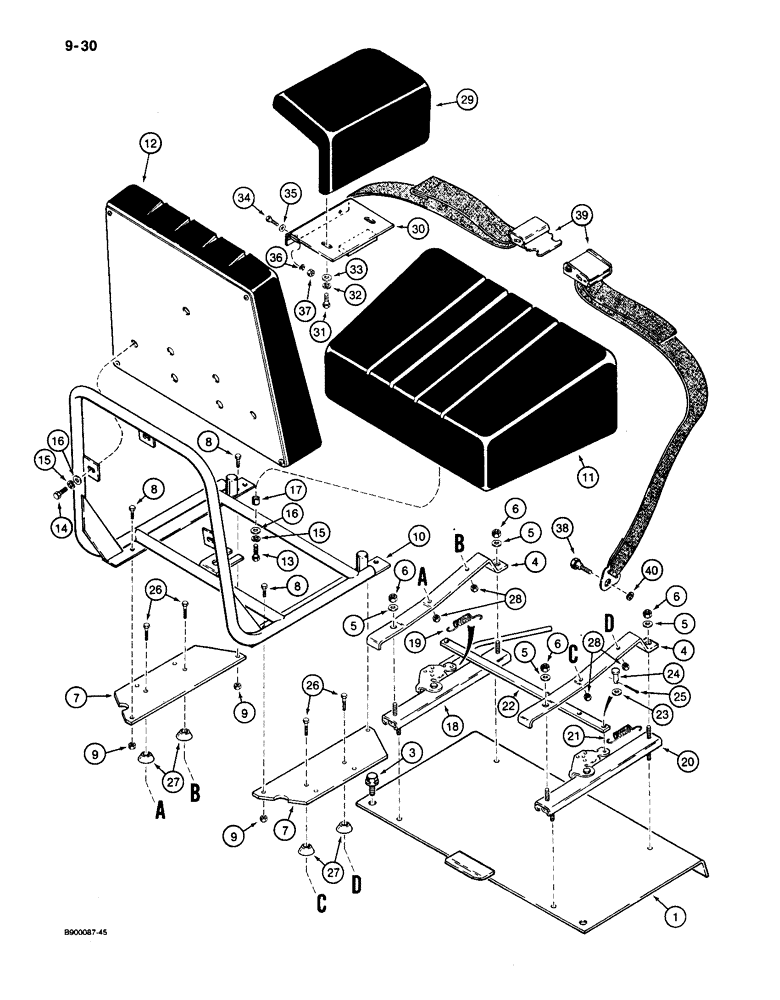

Запчасти Case 650 (9-30) - STANDARD SEAT, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R53232

LARGE PLATE

PLATE - seat mounting, lower, includes master disconnect decal

1шт.

3

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange, 1/2 NC x 1 inch, grade 8

4шт.

4

R53143

SUPPORT

BRACKET - seat mounting

2шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

6

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

7

R57051

LARGE PLATE

PLATE - seat mounting, upper

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

10

R48433

SEAT

FRAME - seat

1шт.

11

R48423

CUSHION

- seat

1шт.

12

R48424

CUSHION

BACKREST - seat

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

17

D35217

BUSHING

SPACER - seat cushion mounting

1шт.

18

R53178

ADJUSTER

ASSEMBLY - seat, left-hand, Includes: Ref. 19

1шт.

19

L35503

SPRING

- seat adjuster

1шт.

Ref. 19 and 21- (1.83" free length)

1шт.

20

R52275

ADJUSTER

ASSEMBLY - seat, right-hand, Includes: Ref. 21

1шт.

21

L35503

SPRING

- seat adjuster

1шт.

22

R53224

BAR

- cross, seat adjusters

1шт.

23

495-21025

WASHER

- flat, 1/4 x 9/16 x 3/64 inch, hardened

2шт.

24

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 inch

2шт.

25

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

26

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

27

A45111

SPACER

- cupped, seat adjuster mounting

4шт.

28

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

29

R48420

ARMREST

- cushion

2шт.

30

R34710

SUPPORT

PLATE - hinged, armrest mounting

2шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

34

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

35

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

38

F42236

STEP BOLT

BOLT - shoulder, special, 7/16 NF x 1-1/4 inch

2шт.

39

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

39

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

40

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
