(9-28) - FLOOR AND STEP PLATES

Запчасти Case 650 (9-28) - FLOOR AND STEP PLATES (09) - CHASSIS/ATTACHMENTS

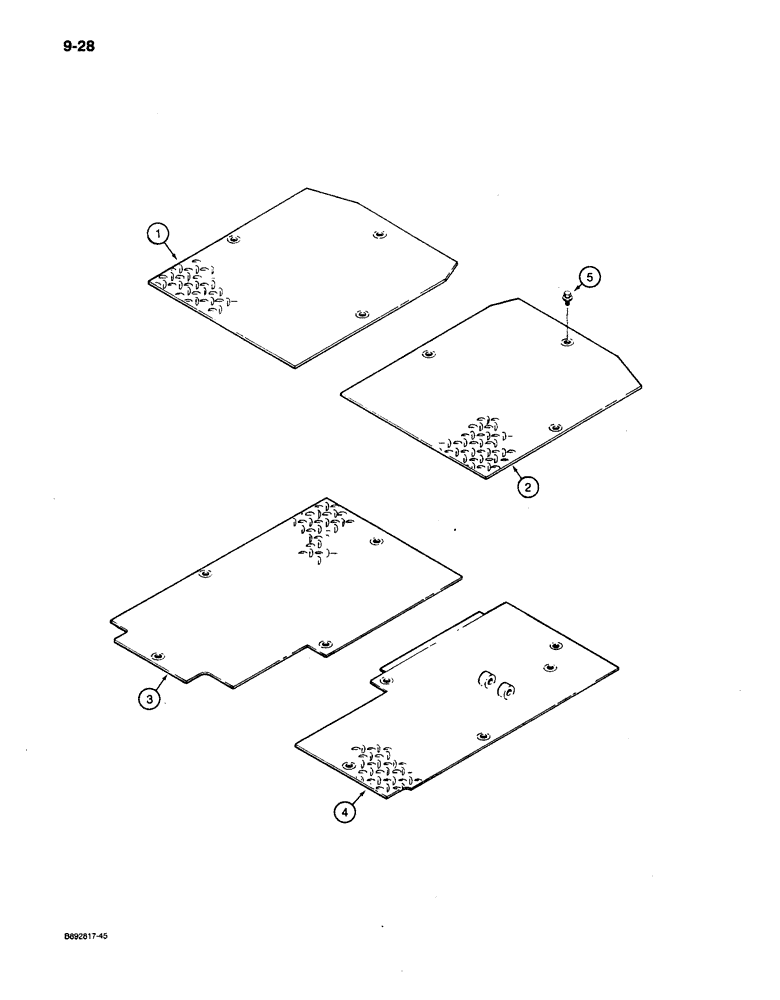

Схема запчастей Case 650 - (9-28) - FLOOR AND STEP PLATES (09) - CHASSIS/ATTACHMENTS
4
3
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R48918

LARGE PLATE

PLATE - step, left-hand

1шт.

2

R48919

LARGE PLATE

PLATE - step, right-hand

1шт.

3

R47511

LARGE PLATE

PLATE - floor, left-hand

1шт.

4

R47611

LARGE PLATE

PLATE - floor, right-hand

1шт.

5

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

15шт.
