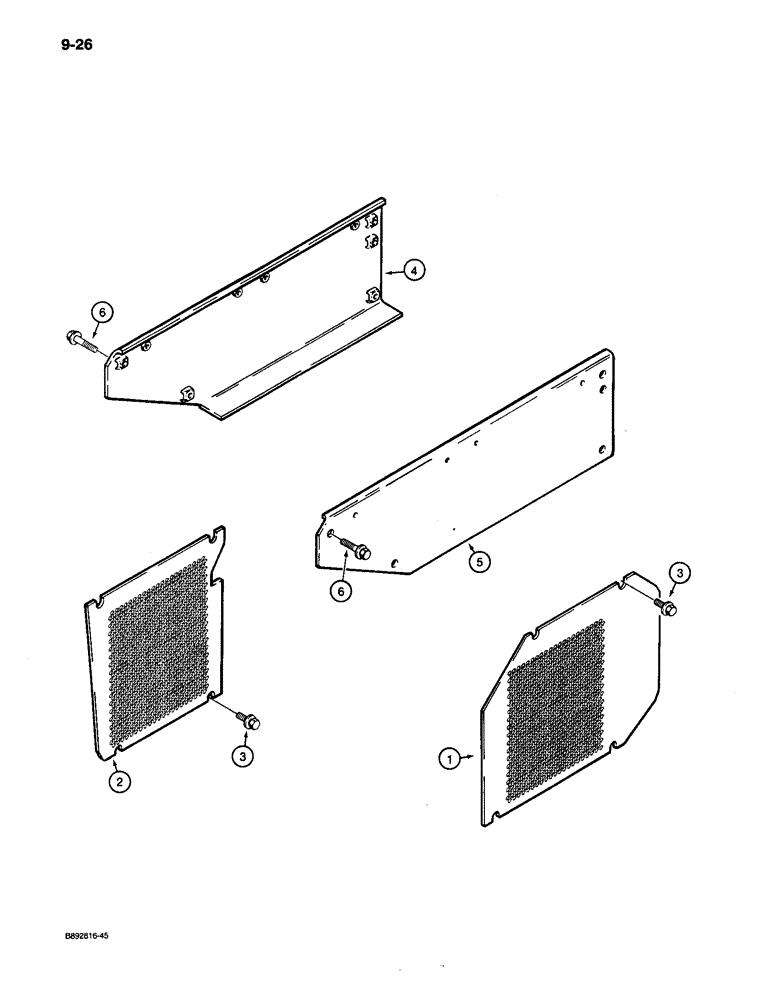

Запчасти Case 650 (9-26) - SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R49552

GUARD

SHIELD - engine side, front

2шт.

2

R42613

LARGE PLATE

SHIELD - engine side, rear

2шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

16шт.

4

R49548

GUARD

SHIELD - lower, left-hand

1шт.

5

R49549

GUARD

SHIELD - lower, right-hand

1шт.

6

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.

25-288

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

cage, subs to 129-857.

1шт.

The part number for the cage is 70996

1шт.
