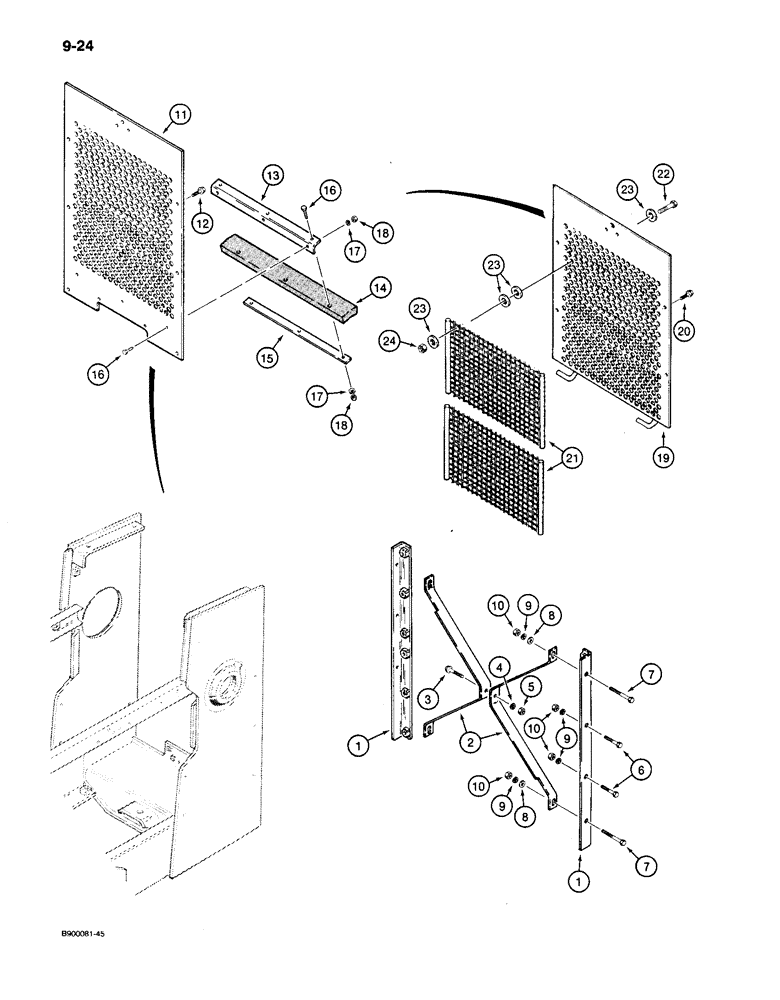

Запчасти Case 650 (9-24) - GRILLE AND BRUSH SCREEN (09) - CHASSIS/ATTACHMENTS

1

R32443

SUPPORT

BRACKET - grille mounting

2шт.

2

R48076

BRACE

- grille and shroud support

2шт.

3

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

R56958

SIEVE

GRILLE - radiator, standard, if used

1шт.

12

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

9шт.

13

R56959

SUPPORT

BRACKET - lower radiator baffle

1шт.

14

R57429

PAD

- baffle, attaches to bracket with adhesive, see below

1шт.

15

R50238

LARGE PLATE

STRIP - backing, lower radiator baffle pad

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

19

R54617

SIEVE

GRILLE - radiator, heavy-duty, if used

1шт.

20

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

21

R45984

SCREW

SCREEN - brush, bolts to inside of grille, if used

2шт.

22

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, If used

12шт.

23

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8 inch, special, if used

48шт.

24

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, if used

12шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
