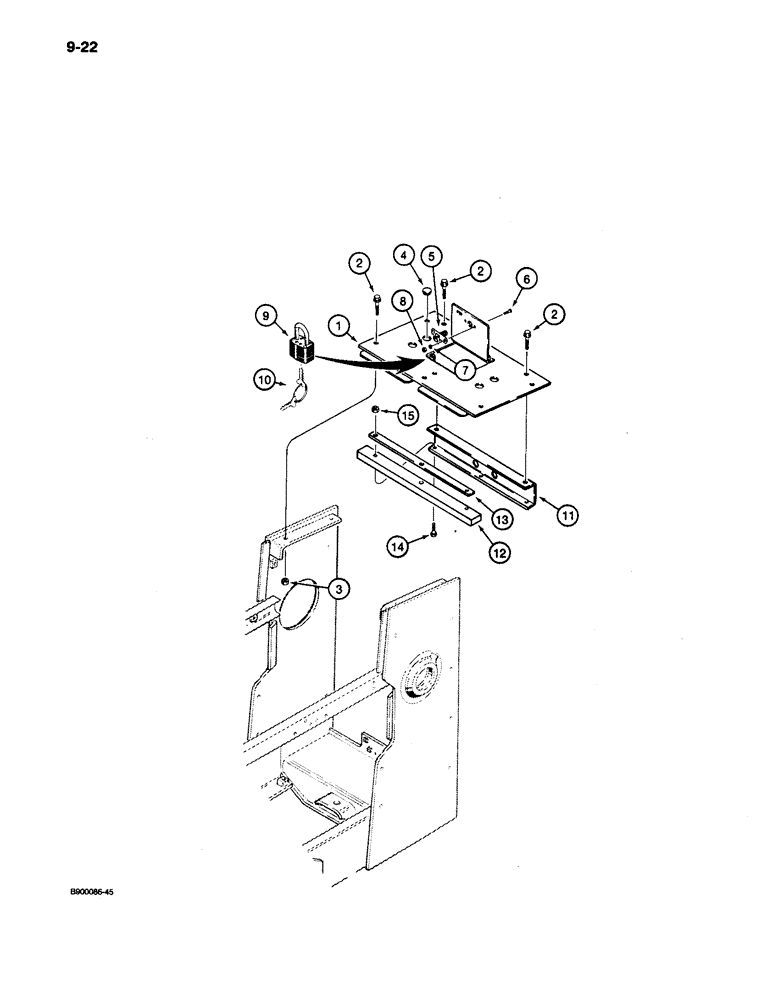

Запчасти Case 650 (9-22) - RADIATOR CAP ACCESS COVER (09) - CHASSIS/ATTACHMENTS

1

R48799

COVER

- radiator cap access, includes decal

1шт.

2

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

353-409

PLUG,Dome, .812" hole, Nylon

- nylon, 13/16 inch (21 mm) diameter, used when ROPS brush guard is not used

4шт.

5

R51672

FASTENER

- raditor access door

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. NC x 1/2 inch

2шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

225-10110

NUT,#10-24

2шт.

9

D93753

PADLOCK

- radiator access, Includes: Ref. 10

1шт.

10

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

11

R50358

SUPPORT

BRACKET - radiator baffle mounting, upper

1шт.

12

R57429

PAD

- upper radiator baffle, attaches to bracket with adhesive, see below

1шт.

13

R50238

LARGE PLATE

STRIP - backing, upper radiator baffle pad

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 inch - 18 NC x 1 inch

3шт.

15

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
