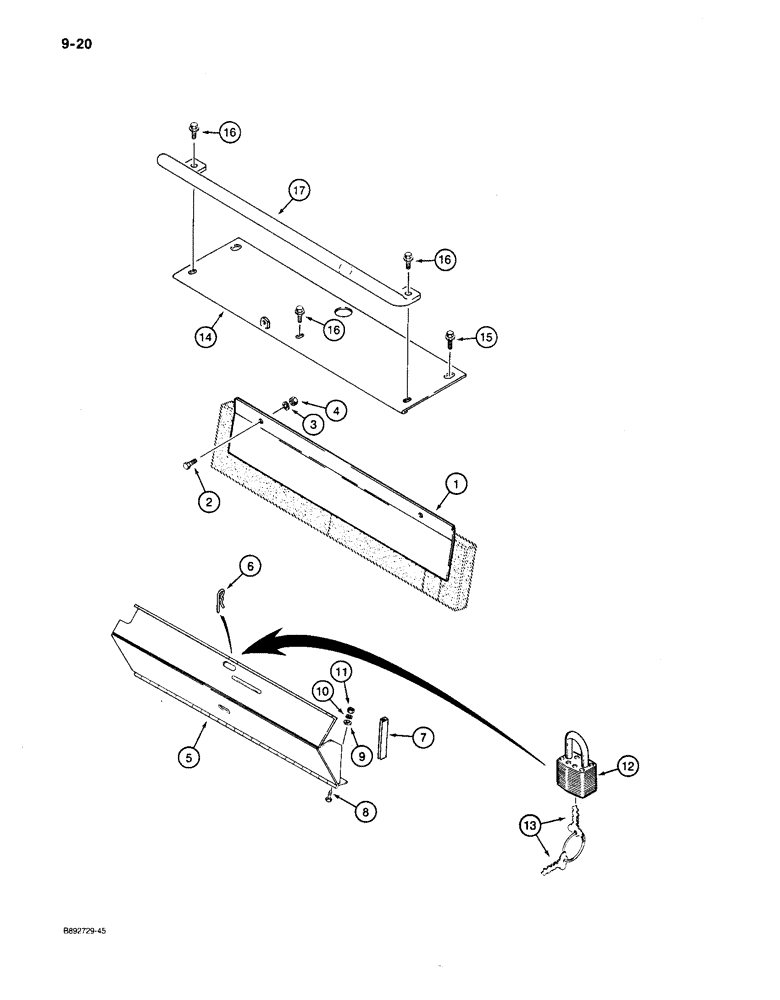

Запчасти Case 650 (9-20) - INSTRUMENT PANEL COVERS (09) - CHASSIS/ATTACHMENTS

1

R34145

NOISE PROTECTION

PANEL - noise reduction, bolts to main frame cross bracket, if used, for pad see Figure 9-44

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

R48196

COVER

- instrument panel lockup

1шт.

6

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Lockup cover

1шт.

7

R38772

RUBBER STRIP

TRIM - edge, right-hand side of cover, 2-13/16 inch (71 mm) long, cut from D52812, see below

1шт.

8

A42923

CARRIAGE BOLT

BOLT - carriage, special

3шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

12

D93753

PADLOCK

- instrument panel cover, Includes: Ref. 13

1шт.

13

R29555

KEY

- for Master padlock only

2шт.

13

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

14

R50189

COVER

- gauges, top, includes decals

1шт.

15

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.

16

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

3шт.

17

R43077

HANDLE

HANDRAIL - bolt-on

1шт.

*D52812

TRIM - edge, 83 inch (2108 mm) long

1шт.
