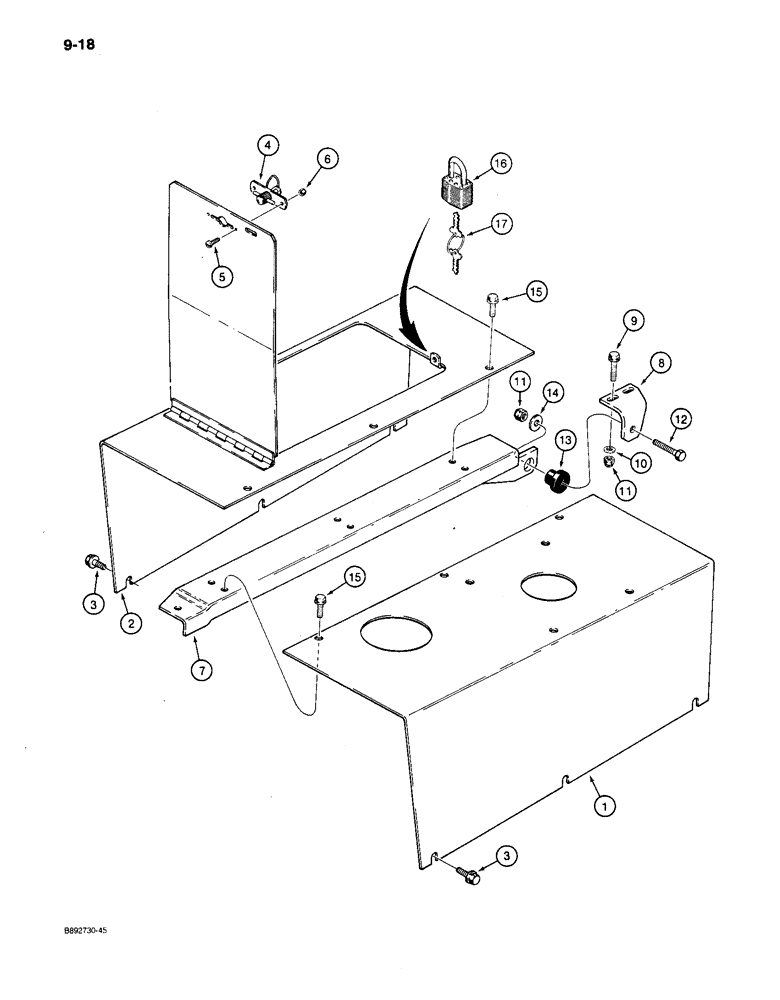

Запчасти Case 650 (9-18) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R57491

HOOD

- right-hand

1шт.

2

R51671

HOOD

- left-hand

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

6шт.

4

R51672

FASTENER

- access door, air cleaner

1шт.

5

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

6

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special

2шт.

7

R51760

SUPPORT

BRACKET - center, hood mounting

1шт.

8

R53987

SUPPORT

BRACKET - hoood retainer, front, bolts to radiator top cover

1шт.

9

121-431

FLANGE BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

BOLT - hex flange, 1/2 NC x 1-3/4 inch, grade 8

2шт.

10

R24323

WASHER

- flat, 13.5 x 25 x 4/5 mm, hardened

2шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex,m self-locking, 1/2 inch NC

3шт.

12

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

13

CASL13142

BUSHING

MOUNT - isolator, rubber

1шт.

14

D25022

WASHER

- flat, 17/32 x 1-3/4 x 3/16 inch

1шт.

15

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

7шт.

16

D93753

PADLOCK

- includes keys, air cleaner access cover, Includes: Ref. 17

1шт.

17

R29555

KEY

- for Master padlock only, if used

2шт.

17

D93751

SET OF 2 KEYS

KEY - for Yale padlock, if used

2шт.
