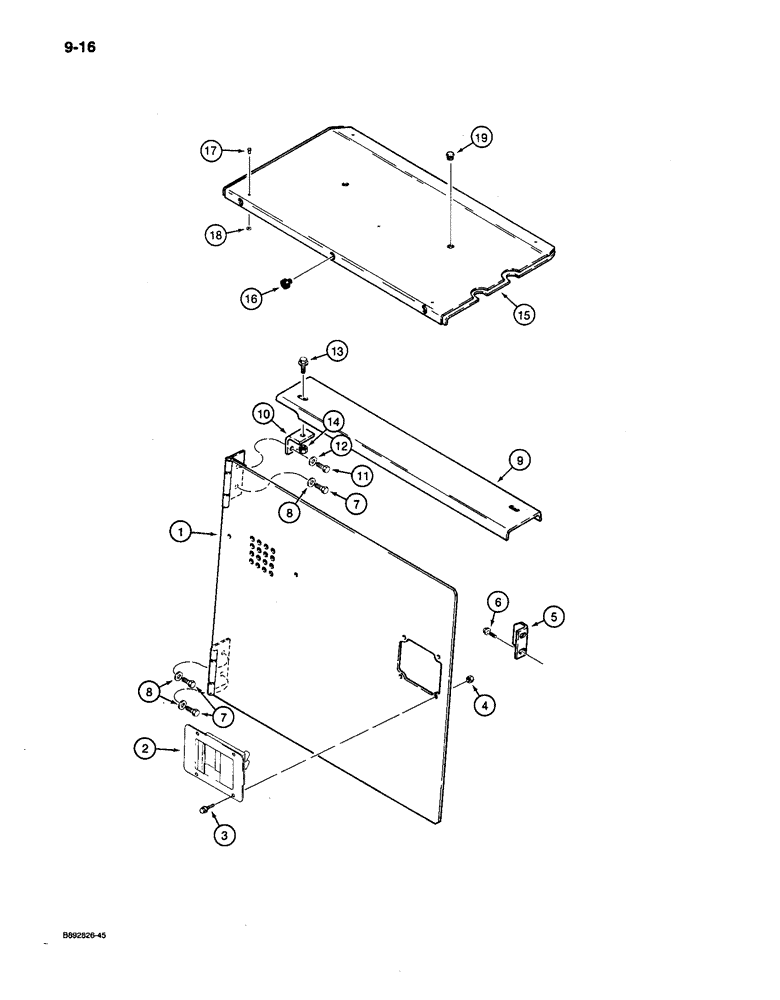

Запчасти Case 650 (9-16) - COVERS, REAR AND BATTERY COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

R55173

COWLING ASSY

COVER - rear, hinged, includes decals, see Figures 9-46 and 9-48 for decals

1шт.

2

R56221

LATCH

- rear cover

1шт.

3

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

4

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

5

R56397

LARGE PLATE

STRIKER - rear cover latch

1шт.

6

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

8

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

3шт.

9

R49363

COVER

- top

1шт.

10

R48725

SUPPORT

BRACKET - top cover support

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

12

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

1шт.

13

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

14

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

2шт.

R51320

COVER

ASSEMBLY - battery, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - battery

1шт.

16

F22426

STOP

BUMPER - rubber

3шт.

17

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 17/32 inch

5шт.

18

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

5шт.

19

353-404

PLUG,Dome, .500" hole, Nylon

2шт.
