(9-14) - SEAT AND TANK FRAME AND GUARDS

Запчасти Case 650 (9-14) - SEAT AND TANK FRAME AND GUARDS (09) - CHASSIS/ATTACHMENTS

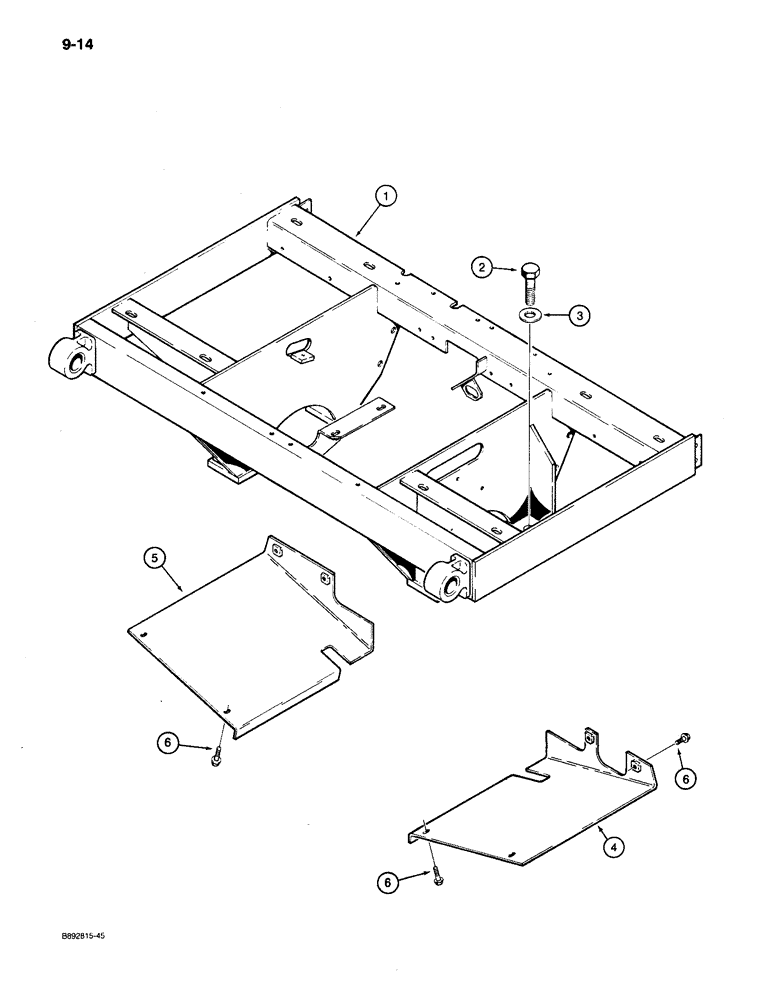

Схема запчастей Case 650 - (9-14) - SEAT AND TANK FRAME AND GUARDS (09) - CHASSIS/ATTACHMENTS
5
1
2
4
3
6
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R48740

FRAME

- seat and tank

1шт.

2

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

4шт.

3

D30196

WASHER

- flat, 1 inch, hardened

4шт.

4

R34600

COVER

GUARD - hydraulic lines, right-hand

1шт.

5

R34554

GUARD

- hydraulic lines, left-hand

1шт.

6

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.
