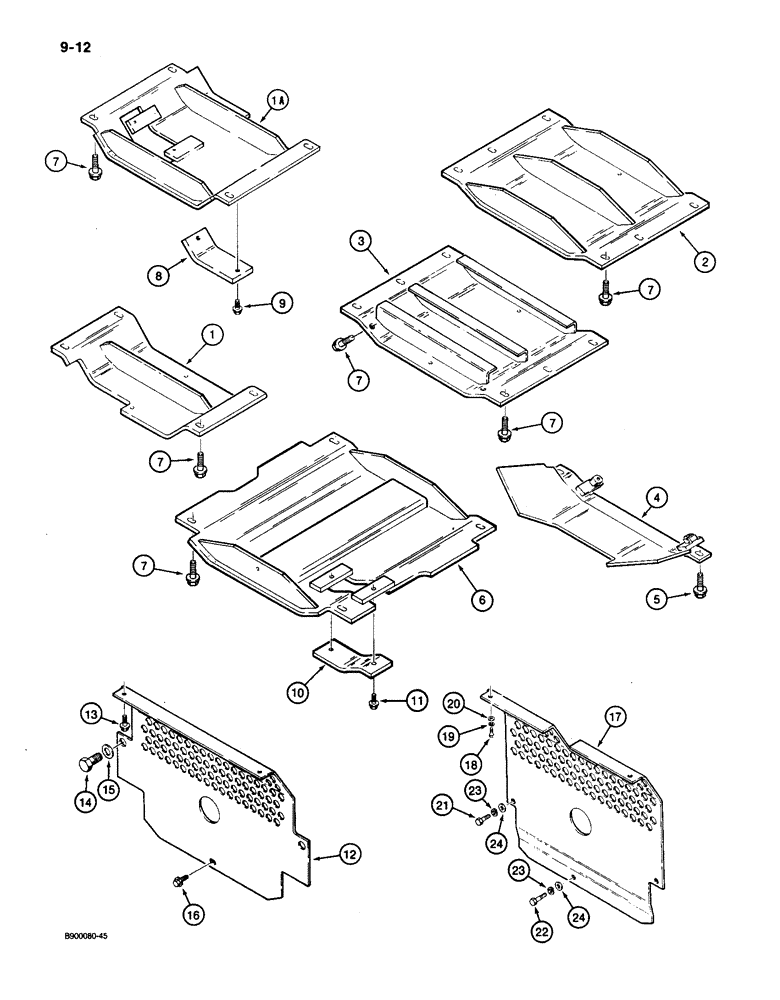

Запчасти Case 650 (9-12) - UNDERCARRIAGE AND TRANSMISSION GUARDS (09) - CHASSIS/ATTACHMENTS

1

R50231

RUNNER

GUARD - oil pan, front

1шт.

1a

R57020

GUARD

- oil pan, rear

1шт.

2

R31581

GUARD

- power train, front

1шт.

3

R31580

GUARD

- power train, rear

1шт.

4

R36235

GUARD

- transmission, standard, if used

1шт.

5

121-506

FLANGE BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex flange, 5/8 NC x 2 inch, grade 8

4шт.

6

R46834

GUARD

- tansmission, heavy-duty, if used

1шт.

7

121-506

FLANGE BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex flange, 5/8 NC x 2 inch, grade 8

24шт.

8

R48345

COVER

- engine oil drain

1шт.

9

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, Telfon coated

2шт.

10

R49641

COVER

- transmission oil drain

1шт.

11

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

12

R51773

GUARD

- rear transmission, models with no rear equipment

1шт.

13

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flang, 3/8 NC x 3/4 inch, grade 8, Teflaon coated

2шт.

14

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

2шт.

15

D30196

WASHER

- flat, 1 inch, hardened

2шт.

16

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

1шт.

17

R51764

GUARD

- rear transmission, models with a ripper

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

3шт.
