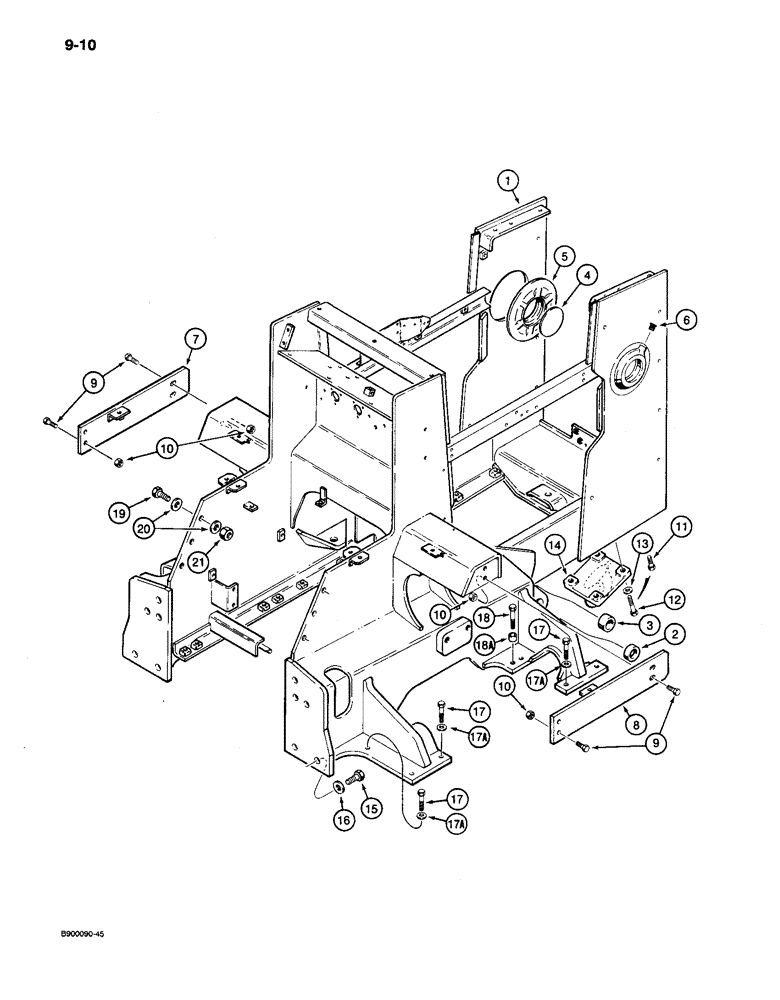

Запчасти Case 650 (9-10) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

R57062

FRAME

- main, Includes: Ref. 2 - 6

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- C-frame mounting, outer, 1 inch (25 mm) wide

2шт.

3

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

- C-frame mounting, inner, 1-7/8 inch (48 mm) wide

2шт.

4

R31950

COVER

PLATE - cover, inside trunnion

2шт.

5

R48191

RACE

- lift cylinder trunnion

2шт.

6

D28481

PLUG

- trunnion race

2шт.

7

R33300

LARGE PLATE

PLATE - left-hand

1шт.

8

R33301

LARGE PLATE

PLATE - right-hand

1шт.

9

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used without pull hook, if used Hex, 3/4"-10 x 1 1/4", G5

4шт.

12

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used with pull hook, if used Hex, 3/4"-10 x 2 1/4", G5

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

4шт.

14

71671

PLATE ASSY.

HOOK - pull, front, if used

1шт.

15

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

10шт.

16

D30196

WASHER

- flat, 1 inch, hardened

10шт.

17

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

BOLT, Locking, 3/4-10 x 2", G8

12шт.

17a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

12шт.

18

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

BOLT, , Forward mounting, leg, inner bolts, both sides of frame Locking, 3/4"-10 x 3", G8

8шт.

18a

R30398

SPACER

- use with Ref. 18 bolt

8шт.

19

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

20

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

12шт.

21

129-107

NUT,5/8"-11, G5

6шт.
