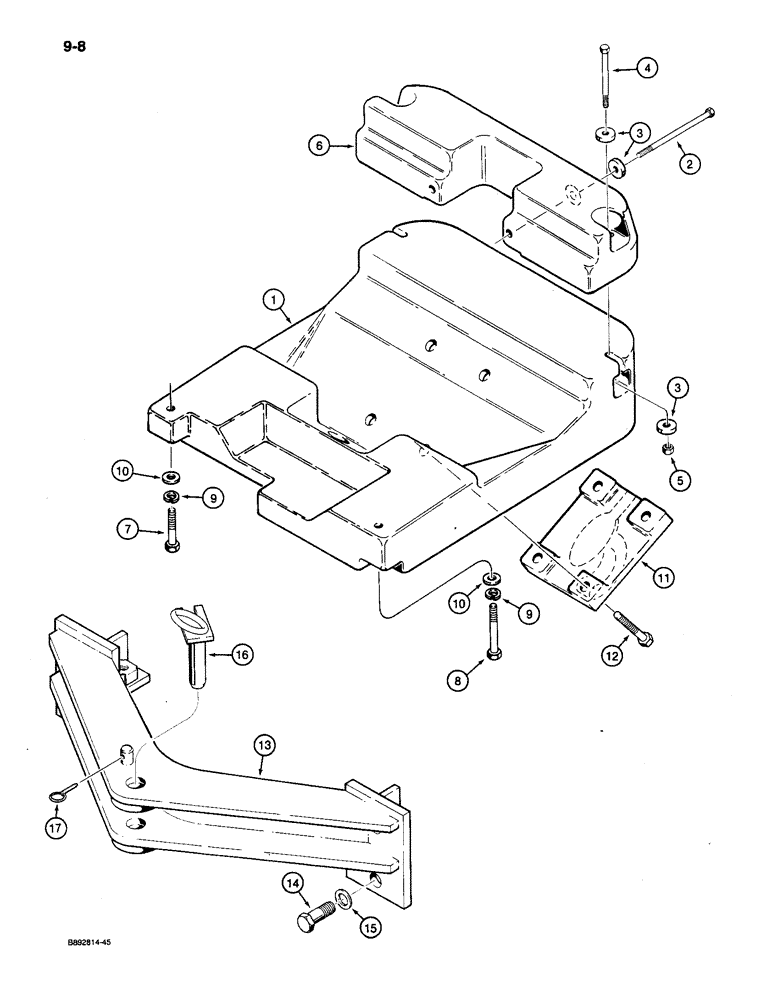

Запчасти Case 650 (9-08) - COUNTERWEIGHTS AND DRAWBAR, FRONT COUNTERWEIGHT AND PULL HOOK (09) - CHASSIS/ATTACHMENTS

1

R50218

BALANCER

COUNTERWEIGHT - front, lower

1шт.

2

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

2шт.

3

D26752

WASHER

- flat, 1/2 inch, hardened

6шт.

4

326-8805

BOLT - hex, 1/2 NC x 5 inch, gradse 8

2шт.

5

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self-locking, 1/2 inch NC

2шт.

6

R40984

BALANCER

COUNTERWEIGHT - front, upper

1шт.

7

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

LH rear Hex, 5/8"-11 x 3 1/4", G5

1шт.

8

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex, 5/8 inch - 11 NC x 4-1/4 inch, right-hand rear

1шт.

9

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

95-11066

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 7/64 inch

2шт.

11

71671

PLATE ASSY.

HOOK - pull, front

1шт.

12

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

13

R43751

DRAWBAR

- models without ripper attachment

1шт.

14

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

Drawbar, models without ripper attachment Hex, 1"-8 x 2 1/2", G5, Full Thd

4шт.

15

D30196

WASHER

- flat, 1 inch, hardened, drawbar, models without ripper attachment

4шт.

16

R33340

PIN

- drawbar, models without ripper attachments

1шт.

17

A30338

PIN

- self-locking, drawbar, models without ripper attachments

1шт.
