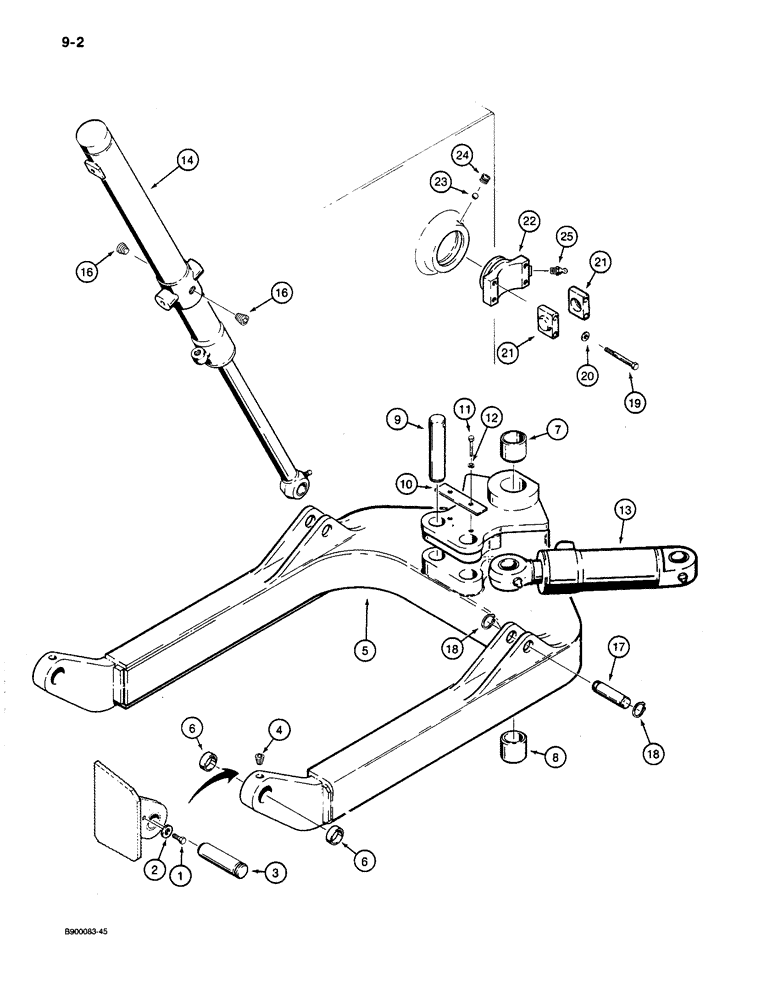

Запчасти Case 650 (9-02) - DOZER C-FRAME (09) - CHASSIS/ATTACHMENTS

1

113-2628

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

BOLT, Locking, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

2

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining, 21/32 x 1-7/8 x 1/4 inch, hardened

2шт.

3

R45977

AXLE PIN,50.8mm OD x 139.7mm L

PIN - mounting, C-frame to main frame

2шт.

4

221-1849

PLUG

- hex socket, 1/8 inch PT

2шт.

5

R57084

FRAME

C-FRAME - dozer, Includes: Ref. 6 - 8

1шт.

6

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- C-frame mounting to main frame

4шт.

7

R31914

BUSHING,63.75mm ID x 76.2mm OD x 53.34mm L

- front, upper

1шт.

8

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

- front, lower

1шт.

9

R31966

AXLE PIN

PIN - mounting, angle, Serial Range: cylinders-C-frame

2шт.

10

R31891

LARGE PLATE

PLATE - pin retaining

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

G103467

CYLINDER ASSY.

CYLINDER ASSEMBLY - angle, parts list Figure 8-32

2шт.

14

G101217

CYLINDER

ASSEMBLY - lift, parts list Figure 8-28

2шт.

16

221-1849

PLUG

- hex socket, 1/8 inch PT

4шт.

17

D51045

PIN,38.1mm OD x 111.25mm L

- lift, Serial Range: cylinders-C-frame

2шт.

18

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

19

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

8шт.

20

R24323

WASHER

- flat, 1/2 inch, hardened

8шт.

21

R48604

BRACKET, PIVOT

BLOCK - cylinder retaining

4шт.

22

R49038

TRUNNION

- pivot, lift cylinder

2шт.

23

211-219

BALL

- 3/4 inch diameter, grade 25, chrome alloy steel

38шт.

24

221-1849

PLUG

- hex socket, 1/8 inch PT, trunnion

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.
