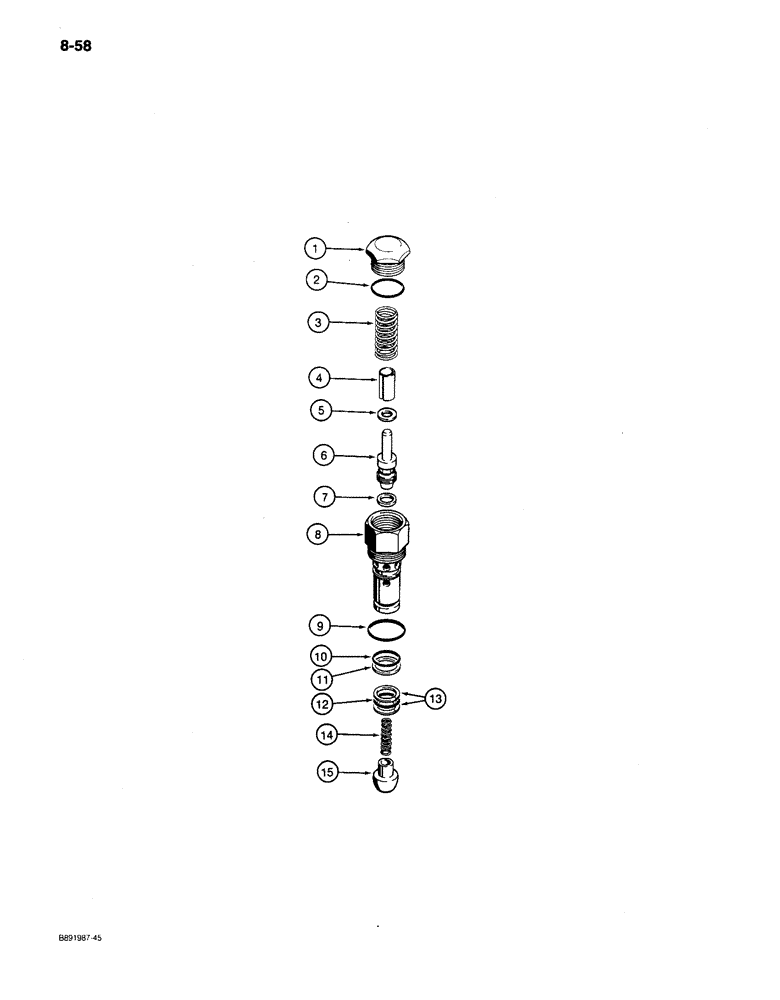

Запчасти Case 650 (8-58) - CIRCUIT RELIEF VALVE (08) - HYDRAULICS

N8950

VALVE

ASSEMBLY - circuit relief, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

N8196

SPRING

- outer

1шт.

4

N8190

SLEEVE VALVE

SLEEVE - outer spring

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

- .010 inch (0.254 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - circuit relief valve, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - circuit relief valve

1шт.

7

D39714

RING

SEAL - plunger, double lip

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Center

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

12

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- inner

1шт.

13

H411371

BACK-UP RING

RING - backup, inner O-ring

2шт.

14

H268730

SPRING

- inner, poppet

1шт.

15

D28576

VALVE POPPET

POPPET - load check

1шт.
