Запчасти Case 650 (8-56) - LOAD CHECK VALVE (08) - HYDRAULICS

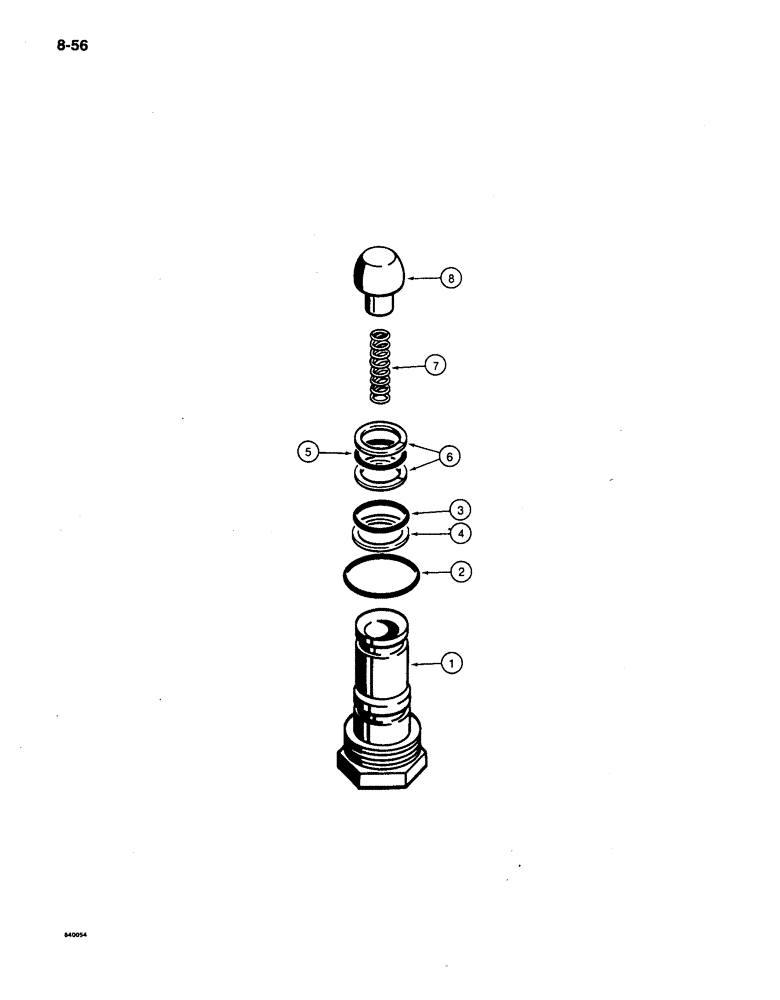

Схема запчастей Case 650 - (8-56) - LOAD CHECK VALVE (08) - HYDRAULICS
2
3
1
5
4
8
7
6

Артикул

Название

Примечание

Количество

D87307

VALVE

ASSEMBLY - load check, Includes: Ref. 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

BODY - load check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Center

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

5

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- inner

1шт.

6

D88725

BACK-UP RING

RING - backup, inner O-ring

2шт.

7

H268730

SPRING

- poppet

1шт.

8

D28576

VALVE POPPET

POPPET - load check valve

1шт.

Выбрано товаров: 9
