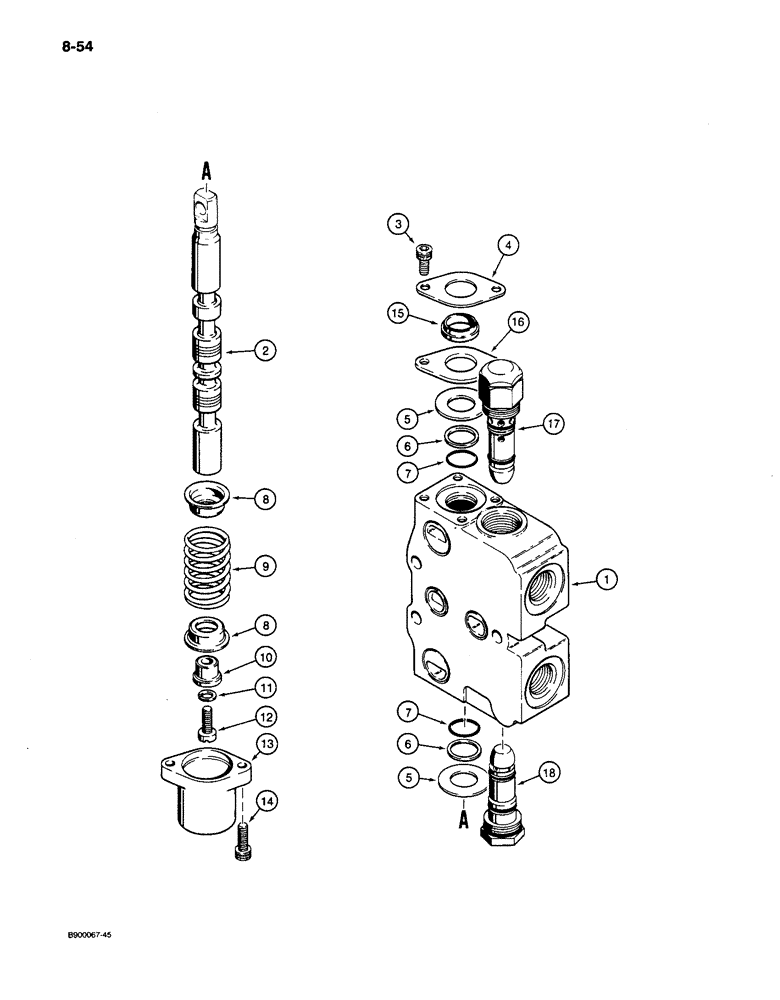

Запчасти Case 650 (8-54) - AUXILIARY SECTIONS (08) - HYDRAULICS

S301088

VALVE BODY

SECTION ASSEMBLY - ripper, Includes: Ref. 1 - 18

1шт.

S301089

VALVE BODY

SECTION ASSEMBLY - dozer blade tilt and angle, Includes: Ref. 1 - 18

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket, 1/4 NC x 1/2 inch

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

2шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, spool O-ring

2шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

2шт.

8

H267591

SPRING SEAT

SEAT - spring

2шт.

9

N8949

SPRING

- centering, spool

1шт.

10

N14593

STEP BOLT

COLLAR - spool

1шт.

11

192-402

LOCK WASHER

WASHER - lock, high collar, 1/4 inch

1шт.

12

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

- Fillister, 5/16 NC x 3/4 inch

1шт.

13

S301092

FLANGE COVER CAP

CAP - spool, lower

1шт.

14

61-414

HEX SOC SCREW,1/4"-20 x 7/8"

SCREW - hex socket, 1/4 NC x 7/8 inch

2шт.

15

N7029

SCRAPER

WIPER - spool

1шт.

16

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.

17

N8950

VALVE

ASSEMBLY - circuit relief, ripper section, parts list Figure 8-58

2шт.

18

D87307

VALVE

ASSEMBLY - load check, dozer tilt and angle sections, parts list Figure 8-56

2шт.
