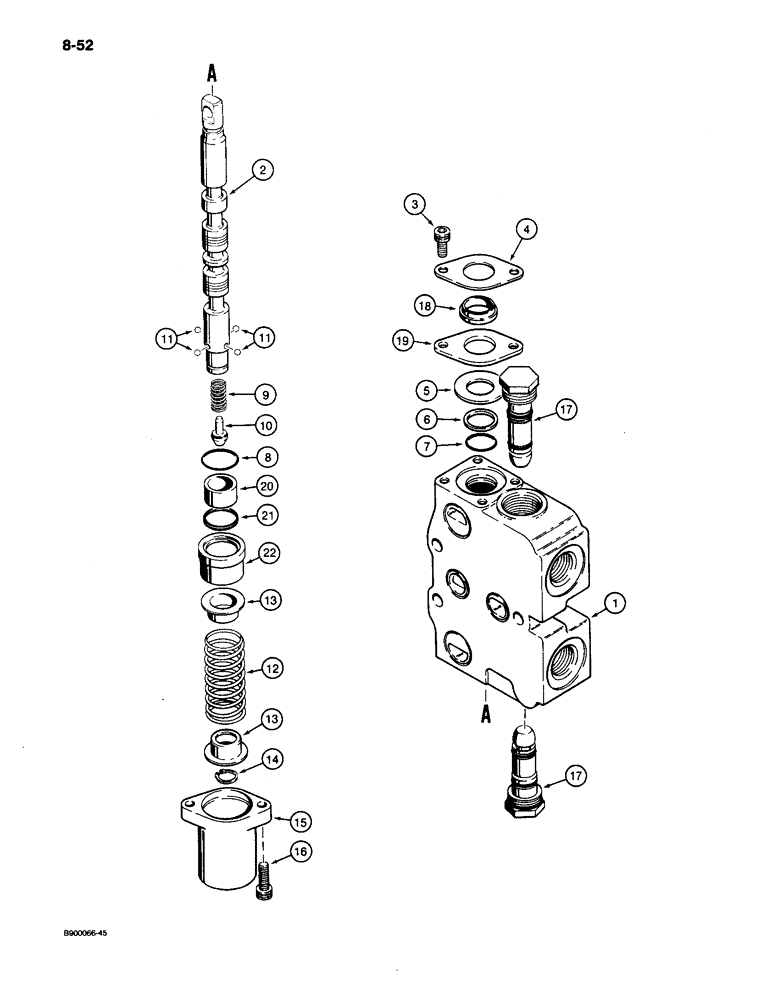

Запчасти Case 650 (8-52) - LIFT SECTION (08) - HYDRAULICS

S301090

VALVE BODY

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket, 1/4 NC x 1/2 inch

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

1шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, spool O-ring

1шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

1шт.

8

S301098

O-RING,1.051" ID x 1.191" OD x 0.07"

- detent sleeve

1шт.

9

N8967

SPRING

- detent

1шт.

10

S301099

VALVE POPPET

POPPET - detent

1шт.

11

S301095

BALL

- steel, 7/32 inch diameter

4шт.

12

N8966

SPRING

- centering, spool

1шт.

13

N7033

SEAT

- spring

2шт.

14

S301094

CIRCLIP

RING - snap, spool

1шт.

15

S301093

CAP

- spool detent

1шт.

16

61-414

HEX SOC SCREW,1/4"-20 x 7/8"

SCREW - hex socket, 1/4 NC x 7/8 inch

2шт.

17

D87307

VALVE

ASSEMBLY - load check, parts list Figure 8-56

2шт.

18

7029

ADAPTER

WIPER - spool

1шт.

19

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.

20

S301097

SLEEVE VALVE

SLEEVE - spool

1шт.

21

S301100

SEAL

- spool sleeve, lip seal

1шт.

22

S301096

SLEEVE VALVE

SLEEVE - detent

1шт.
