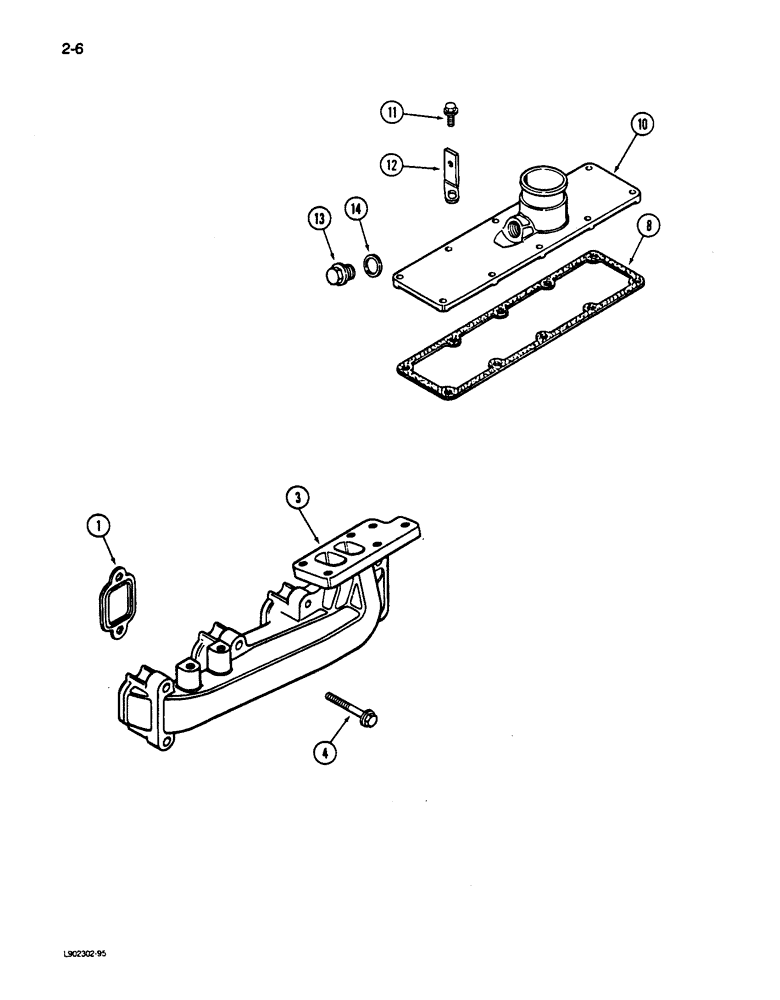

Запчасти Case 650 (2-06) - MANIFOLDS, EXHAUST, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

3

J901919

MANIFOLD

- exhaust

1шт.

4

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, 10 - 1.50 x 65 mm

8шт.

8

J914028

GASKET

- intake manifold

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Order A77416 kit)

1шт.

11

J914028

GASKET

BOLT - intake manifold

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See Figure 3-8), intake

1шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77416

COVER

KIT - intake manifold (Includes Ref. 10, 13 and 14)

1шт.
