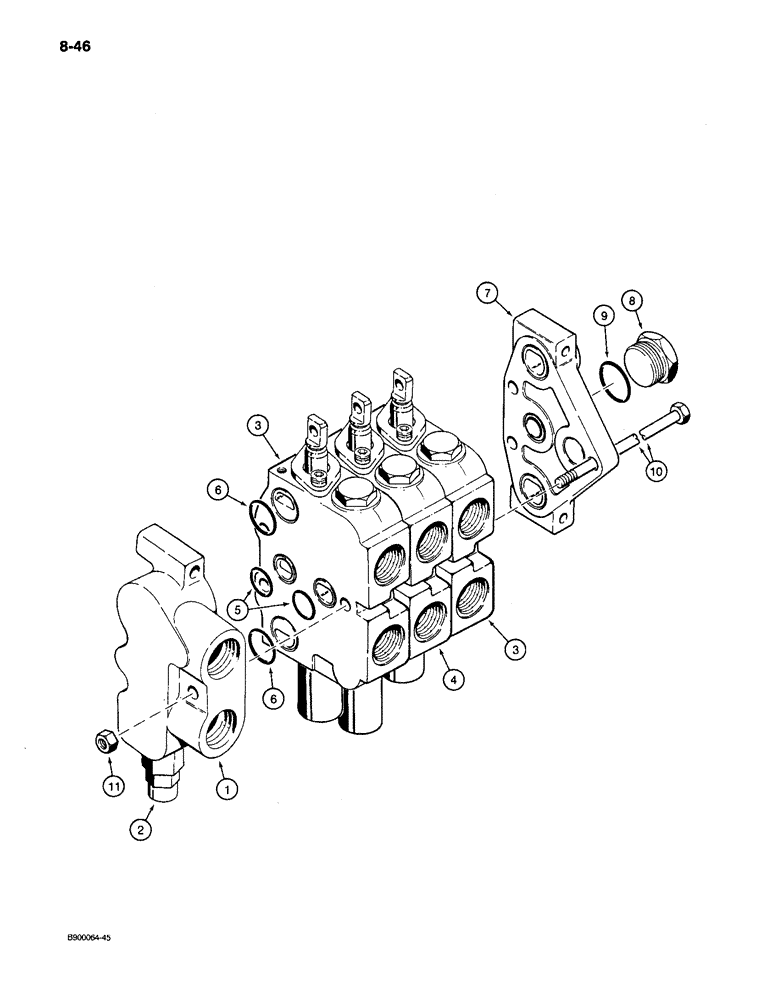

Запчасти Case 650 (8-46) - THREE SPOOL CONTROL VALVE (08) - HYDRAULICS

R56926

VALVE

ASSEMBLY - equipment control, three spool, Includes: Ref. 1 - 11

1шт.

The control valve assembly part number is stamped on the inlet/outlet section.

1шт.

1

N8942

VALVE BLOCK

SECTION - inlet-outlet

1шт.

2

N8191

VALVE

ASSEMBLY - main relief, parts list Figure 8-50

1шт.

3

S301089

VALVE BODY

SECTION ASSEMBLY - dozer tilt and angle, parts list Figure 8-54

2шт.

4

S301090

VALVE BODY

SECTION ASSEMBLY - dozer lift, parts list Figure 8-52

1шт.

5

S300243

GASKET

O-RING - between sections, 13/16 inch (21 mm) ID

8шт.

6

S300244

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16 inch (24 mm) ID

8шт.

7

S301091

COVER

ASSEMBLY - end, Includes: Ref. 8 and 9

1шт.

8

218-5159

PLUG,1-3/16" - 12 ORB

- hex, 1-3/16-12 inch O-ring boss, Includes: Ref. 9

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide

1шт.

10

N8971

BOLT

- tie, hex, 3/8 NC x 8 inch

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

S302092

SEAL KIT

KIT, for 1 section only

1шт.

The kit contains the old style .070 cross section seals as well as the new. 103 cross section seals built from April 91.

1шт.
