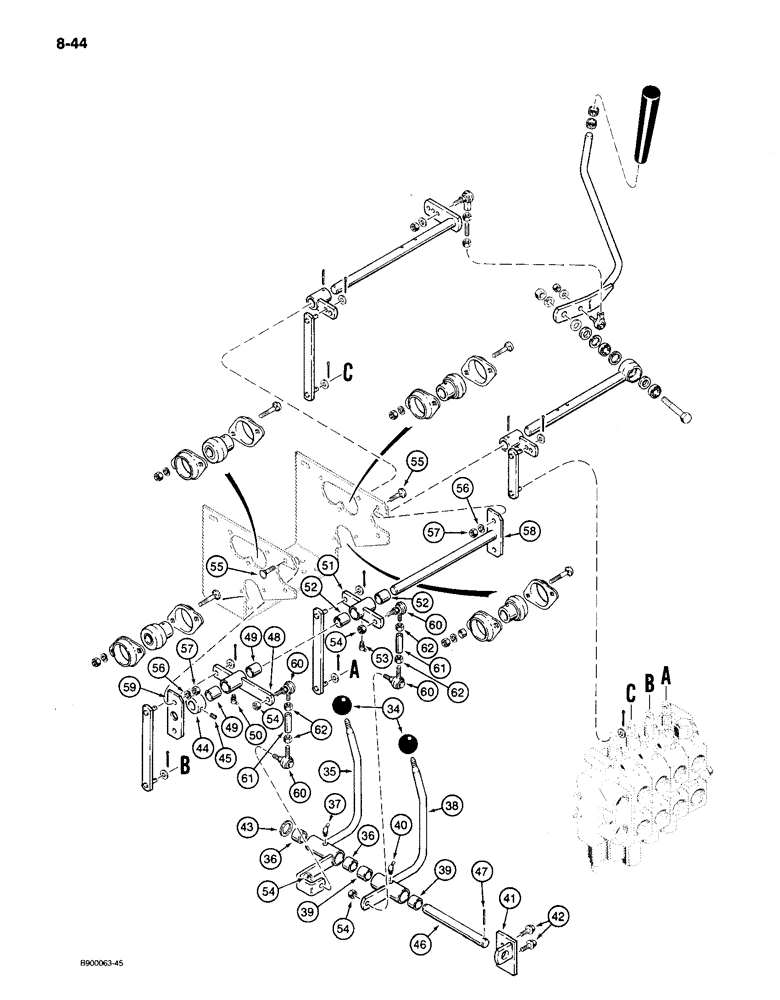

Запчасти Case 650 (8-44) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE LEVERS - FOUR SPOOL VALVE (08) - HYDRAULICS

34

70213

KNOB

- control lever

2шт.

R52148

LEVER ASSY.

LEVER ASSEMBLY - control, auxiliary, inner, Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary, inner

1шт.

36

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

37

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

R52150

LEVER ASSY.

LEVER ASSEMBLY - control, auxiliary, outer, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary, outer

1шт.

39

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

40

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

41

R36889

BRACKET

- mounting, control lever

1шт.

42

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

2шт.

43

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish 1/32" Thk

1шт.

44

T10676

COLLAR

- locking, lever retaining

1шт.

45

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

46

R47819

SHAFT

- auxiliary control lever

1шт.

47

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

R52862

LEVER ASSY.

LEVER ASSEMBLY - shaft, auxiliary, rear, Includes: Ref. 48 - 50

1шт.

48

NSS

NOT SOLD SEPARAT

LEVER - shaft, auxiliary

1шт.

49

R52129

BRONZE BUSHING

BEARING - ball, shaft

2шт.

50

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

R52860

LEVER ASSY.

LEVER ASSEMBLY - shaft, auxiliary, front, Includes: Ref. 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

LEVER - auxiliary

1шт.

52

R52129

BRONZE BUSHING

BEARING - ball, shaft

1шт.

53

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

54

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

4шт.

55

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

4шт.

56

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

57

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

58

R56434

SHAFT

- control, auxiliary

1шт.

59

R56435

LARGE PLATE

PLATE - mounting, control shaft

1шт.

60

R47939

ROD

JOINT - ball, male

4шт.

61

R27647

LINK

- ball joints

2шт.

62

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.
