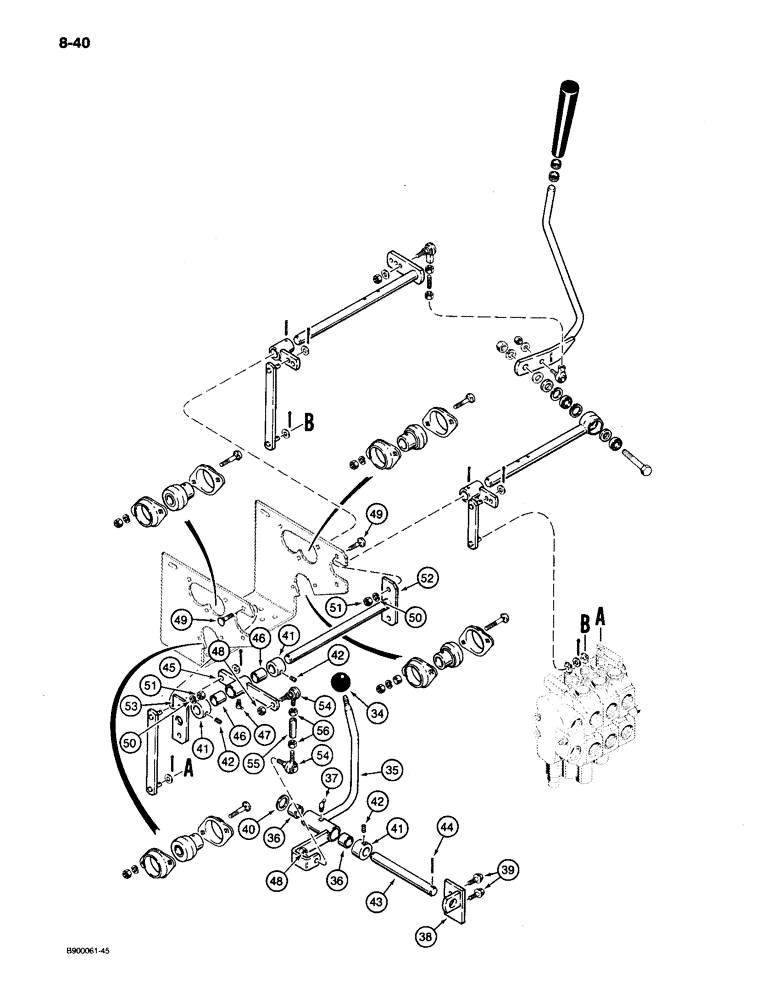

Запчасти Case 650 (8-40) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO LEVERS - THREE SPOOL VALVE (08) - HYDRAULICS

34

70213

KNOB

- control lever

1шт.

R52148

LEVER ASSY.

LEVER ASSEMBLY - control, auxiliary, Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary

1шт.

36

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

37

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

38

R36889

BRACKET

- mounting, control lever

1шт.

39

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 x 3/4 inch NC, grade 8, Teflon coated

2шт.

40

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish 1/32" Thk

1шт.

41

T10676

COLLAR

- locking, lever retaining

3шт.

42

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

3шт.

43

R47819

SHAFT

- auxiliary control lever

1шт.

44

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

R52862

LEVER ASSY.

LEVER ASSEMBLY - shaft, auxiliary, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

LEVER - auxiliary

1шт.

46

R52129

BRONZE BUSHING

BEARING - ball, shaft

2шт.

47

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

48

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

2шт.

49

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

4шт.

50

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

52

R56434

SHAFT

- control, auxiliary

1шт.

53

56435

SPACER

PLATE - mounting, control shaft

1шт.

54

R47939

ROD

JOINT - ball, male

2шт.

55

R27647

LINK

- ball joints

1шт.

56

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.
