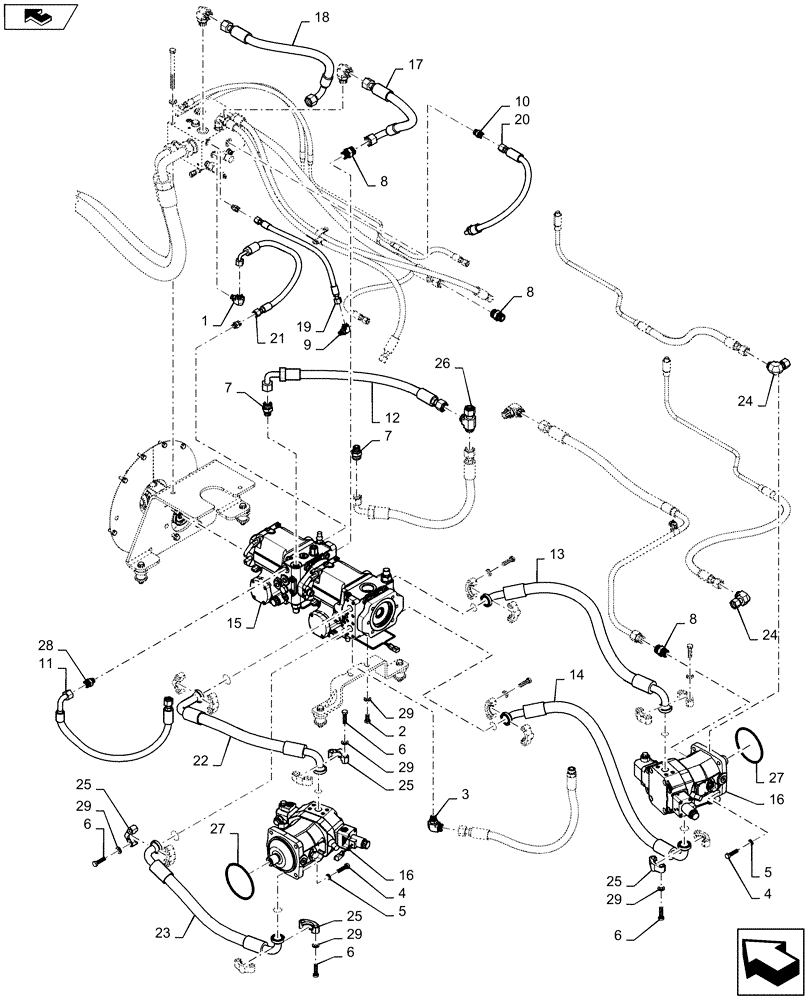

Запчасти Case 750M WT/LGP (29.218.AO[04]) - PUMP, HYDRO (29) - HYDROSTATIC DRIVE

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

3

87656136

HYD CONNECTOR

ELBOW 90 ADJ -12 ORFS X 7/8-14 ORB

1шт.

4

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

5

892-11012

LOCK WASHER,M12

8шт.

6

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

32шт.

7

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

2шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

5шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

10

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

11

47436589

HYDRAULIC HOSE

Hydro Pump Filter Outlet

1шт.

12

47525786

HYDRAULIC HOSE

FILTER TO FRONT PUMP FE

1шт.

13

47526207

HYDRAULIC HOSE

FRONT PUMP TO RH MOTOR TOP

1шт.

14

47526209

HYDRAULIC HOSE

FRONT PUMP TO RH MOTOR BOTTOM

1шт.

15

84319679

HYDROSTATIC PUMP

Tandem Hydro Pump Assembly

1шт.

15

84319679R

REMAN-HYDROSTAT PUMP

750M LT, 750M WT/LGP, Both Tier 4A

1шт.

15

84319679C

CORE-HYDROSTAT PUMP

Return Number

1шт.

16

84319681

HYDROSTATIC MOTOR

80CC Motor

2шт.

16

84319681R

REMAN-HYDROSTAT MOTO

750M LT, 750M WT/LGP

2шт.

16

84319681C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

17

84422695

HYDRAULIC HOSE

FRONT PUMP TO MANIFOLD T

1шт.

18

84422703

HYDRAULIC HOSE

REAR PUMP TO MANIFOLD TP

1шт.

19

84422715

HYDRAULIC HOSE

YST2 PORT

1шт.

20

84426523

HYDRAULIC HOSE

PUMP G TO MANIFOLD P

1шт.

21

84566366

HYDRAULIC HOSE

YST1 PORT

1шт.

22

84566369

HYDRAULIC HOSE

REAR PUMP TO LH MOTOR TOP

1шт.

23

84566371

HYDRAULIC HOSE

REAR PUMP TO LH MOTOR BOTTOM

1шт.

24

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

2шт.

25

86980732

CLAMP

SPLIT FLANGE DN25 400 BAR

16шт.

26

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

SWIVEL RUN ORFS 20MM

1шт.

27

87477180

O-RING

0.103 X 5.487 161 6

2шт.

28

87530400

HYD CONNECTOR

STR -12ORFSX3/4-16 ORB JUMP

1шт.

29

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

32шт.
