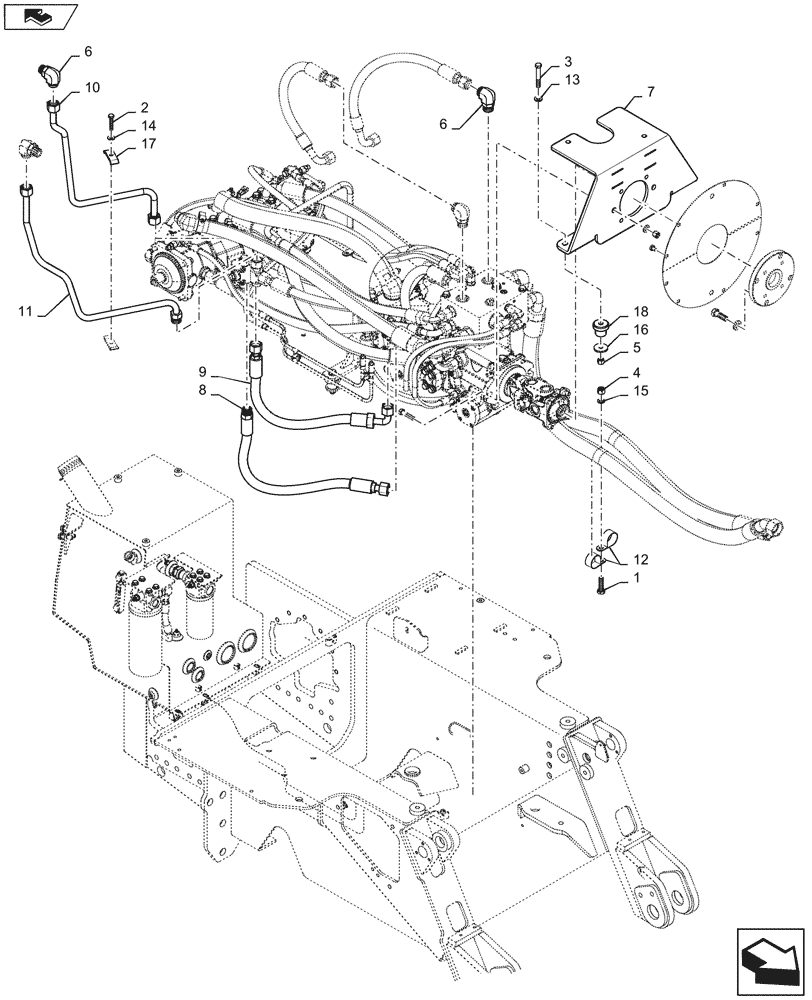

Запчасти Case 750M WT/LGP (29.218.AO[02]) - PUMP, HYDRO (29) - HYDROSTATIC DRIVE

1

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

2

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

3

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

4шт.

7

47376381

BRACKET

Front Pump Mount Brackey Assembly- Painted

1шт.

8

47524102

HYDRAULIC HOSE

Filter Outlet

1шт.

9

47524774

HYDRAULIC HOSE

FILTER TO RR PUMP FE

1шт.

10

47526289

HYD TUBE

Filter Outlet

1шт.

11

47526292

HYD TUBE

Filter Inlet

1шт.

12

86639007

CLAMP,44.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

13

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

2шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

15

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

M10, 10.65X23.0X2.2 HTS BORON, B

1шт.

16

D25022

WASHER

17/32" ID, 1 3/4" OD

2шт.

17

D40236

CLAMP

Hose Clamp

2шт.

18

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Platform Mounting Insulator

2шт.

19

47739429

HYD CONNECTOR,1 - 5/16 - 12 ORB 1 - 3/16 - 12 ORFS

1шт.
