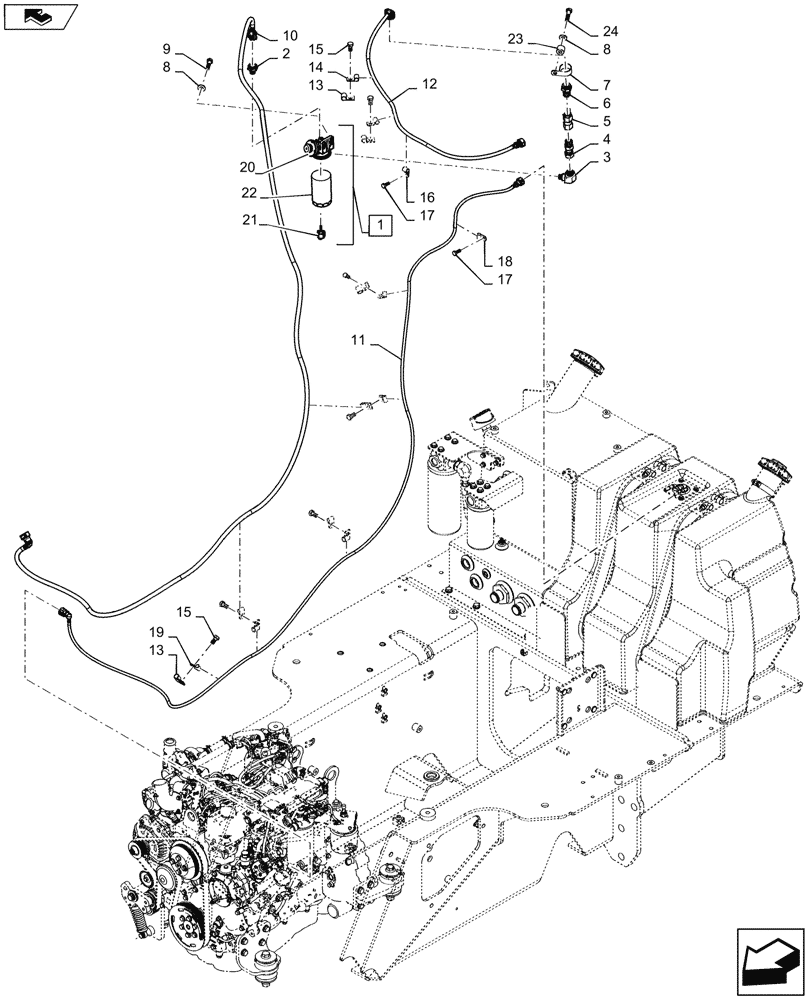

Запчасти Case 750M WT/LGP (10.216.AL[01]) - FUEL TANK (10) - ENGINE

1

84348875

FILTER ASSY

Comp Filter

1шт.

2

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246 NG12 TO M14X1.5

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

4

84520680

HYD CONNECTOR

Connected to Shut-Off Valve

1шт.

5

86984713

SHUT-OFF VALVE

One Way Fuel Shut Off Valve

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

246 NG12 TO 1/2 IN NPTF

1шт.

7

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

33.3M P INSUL 3/8 BOLT

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

9

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

10

84534512

FUEL TUBE

3625mm long

1шт.

11

84534515

FUEL TUBE

3075mm long

1шт.

12

84534514

FUEL TUBE

1125mm long

1шт.

13

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

7шт.

14

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

11.1MM P INSUL 10.3MM HOLE ZND

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

5шт.

16

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

18

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

19

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

20

87705123

FILTER HEAD

1шт.

21

87519307

SENSOR

1шт.

22

84348875

FILTER ASSY

1шт.

23

436110A1

SPACER

1шт.

24

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.
