Запчасти Case 750M WT/LGP (89.128.AC[01]) - RIPPER, MECH (89) - TOOLS

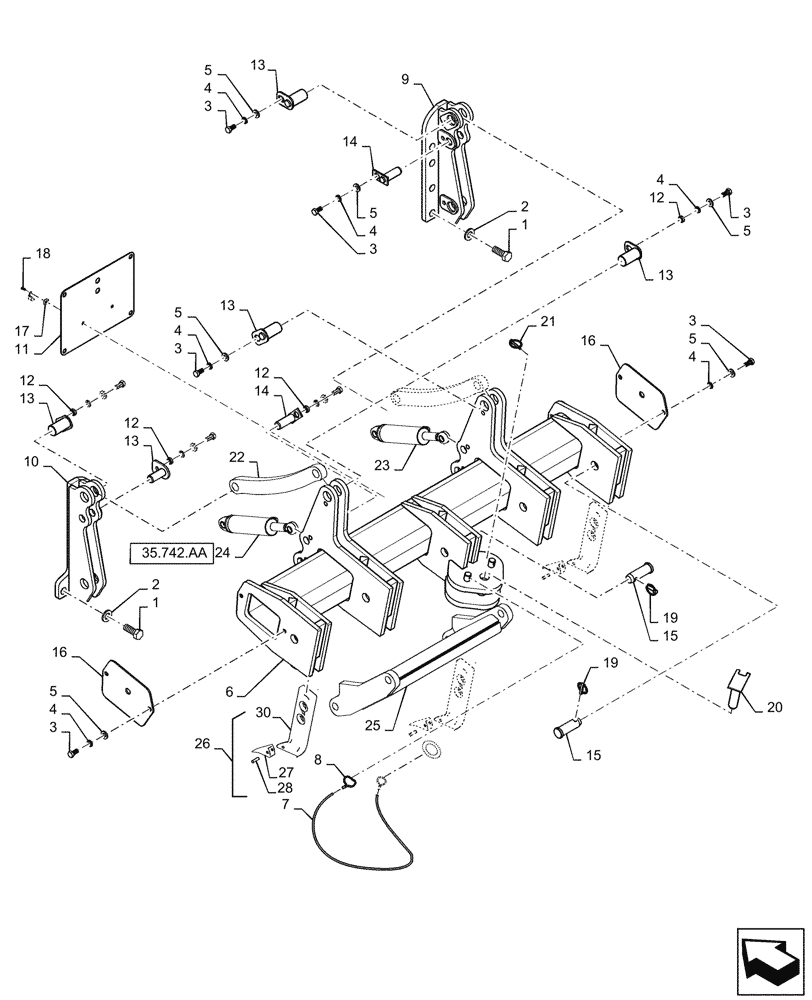

Схема запчастей Case 750M WT/LGP - (89.128.AC[01]) - RIPPER, MECH (89) - TOOLS
35.742.aa
27
14
19
4
12
11
10
19
7
25
5
22
5
8
6
13
2
4
5
2
13
9
16
18
13
20
24
26
4
3
5
3
12
3
3
1
28
4
17
5
12
3
5
15
12
3
30
14
4
21
16
23
4
1
13
15
13

Артикул

Название

Примечание

Количество

1

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

2

496-31106

WASHER,1 1/16" x 2" x .219", HDN

10шт.

3

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

16шт.

4

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

16шт.

5

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

16шт.

6

47496278

BAR

Assy

1шт.

7

47496259

CABLE,405mm L

Lanyard

1шт.

8

47496260

SLEEVE

Aluminum

2шт.

9

84153839

BRACKET

RH Bracket Assembly

1шт.

10

84153840

BRACKET

LH Bracket Assembly

1шт.

11

84156087

COVER PLATE

Rear

1шт.

12

86993730

SPACER

Plated Spacer

12шт.

13

87407973

PIN, LOCKING

Lockhead Pin

8шт.

14

87407974

PIN, LOCKING

Plate Retainer Pin

4шт.

15

87408425

PIN,38.05mm OD x 120mm L

Ripper Pin

3шт.

16

87436761

COVER ASSY

Ripper Tube Cover

2шт.

17

122958A1

SQUARE NUT

M10 X 1.5 SQ ZND

2шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

2шт.

19

378704A1

LOCK PIN

PIN KLIK

3шт.

20

431997A1

TOWBAR PIN

Pin/ W Drawbar

1шт.

21

A30338

PIN

1 4 X 1.75 KLIK-PIN

1шт.

22

47492258

ARM

Upper

2шт.

23

84567541

HYDRAULIC CYLINDER

Ripper RH

1шт.

24

84567543

HYDRAULIC CYLINDER

Ripper LH

1шт.

25

87436765

ARM ASSY.

Arm Lower

1шт.

26

87436762

BUCKET TOOTH SHANK

Incl 27 - 28

3шт.

27

L55608

POINT

Ripper Tooth, (1) Incl in 26

3шт.

28

D39448

PIN

Ripper Tooth Mounting

3шт.

29

84567645

SEAL KIT

Hydraulic Cylinders

1шт.

30

87436763

SHANK

Ripper

3шт.

Выбрано товаров: 30
