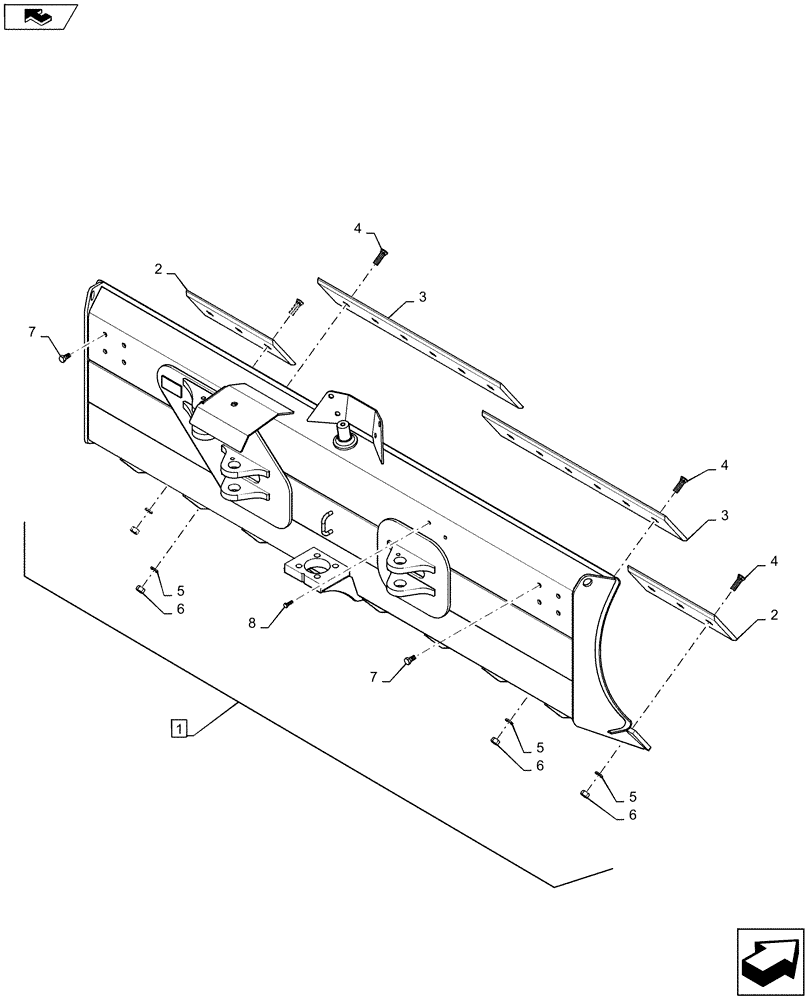

Запчасти Case 750M WT/LGP (86.110.AD[01]) - BLADE, 104" (86) - DOZER

1

47473889

DOZER BLADE

Complete Blade Assembly Incl 2 - 8

1шт.

2

305440A1

EDGE

End Plate Cutting Edge

2шт.

3

47473898

CUTTING EDGE

Center Plate Cutting Edge 104"

2шт.

4

R56474

PLOW BOLT

3/4-10 X 2-1/2 PLOW

18шт.

5

92-11075

LOCK WASHER,3/4"

REG 3/4 0.759 CST PLN

18шт.

6

29-1012

NUT,3/4"-10, G8

18шт.

7

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.
