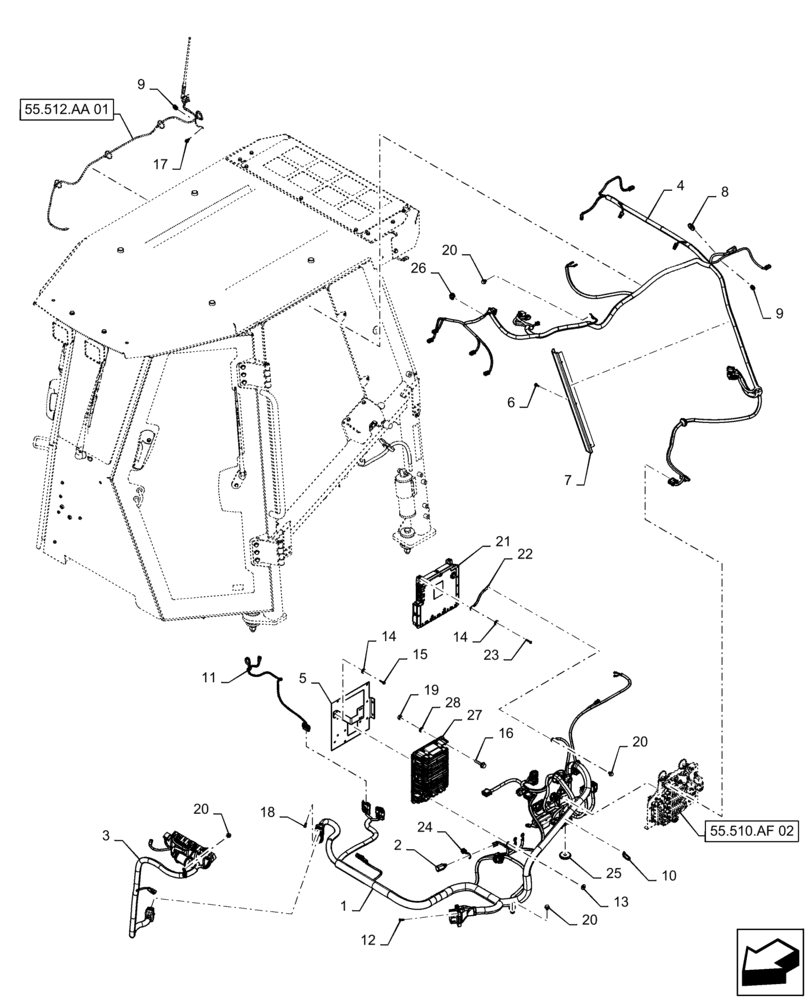

Запчасти Case 750M WT/LGP (55.512.AF[01]) - ROPS, CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47682668

WIRE HARNESS

Cab

1шт.

2

283779A1

POWER SOCKET,12V

Outlet, 12V

1шт.

3

47510638

WIRE HARNESS

Dashboard

1шт.

4

47681282

WIRE HARNESS

Cab AC Lights

1шт.

5

47395977

PLATE

Harness Mount

1шт.

6

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

1шт.

7

84470975

GUARD

Wire Harness Cover

3шт.

8

87615074

GROMMET

Condenser

1шт.

9

87577766

GROMMET

Rear Lights

2шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

48шт.

11

84382961

WIRE HARNESS

Right Wiper

1шт.

12

540-712

SCREW,Cross Pan Hd, M5 x 12

4шт.

13

13550401

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

14

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

12шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

16

845-6025

BOLT,Hex Flg, M6 x 25, 8.8

6шт.

17

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

1шт.

18

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

19

412152

NUT,M6 x 1, Cl 8.8

6шт.

20

86509558

FLANGE BOLT,Hex, M10 x 12mm, Cl 8.8

4шт.

21

84328725

ECU

UCM 24V STD2

1шт.

22

87413162

GROUND STRAP

Cold Start

1шт.

23

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

24

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

1шт.

25

84467169

GROMMET

Seat

1шт.

26

86982772

GROMMET

Antenna Cable

1шт.

27

84197492

EQUALIZER

80 Amp, 24V - 12V, Sealed

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.
