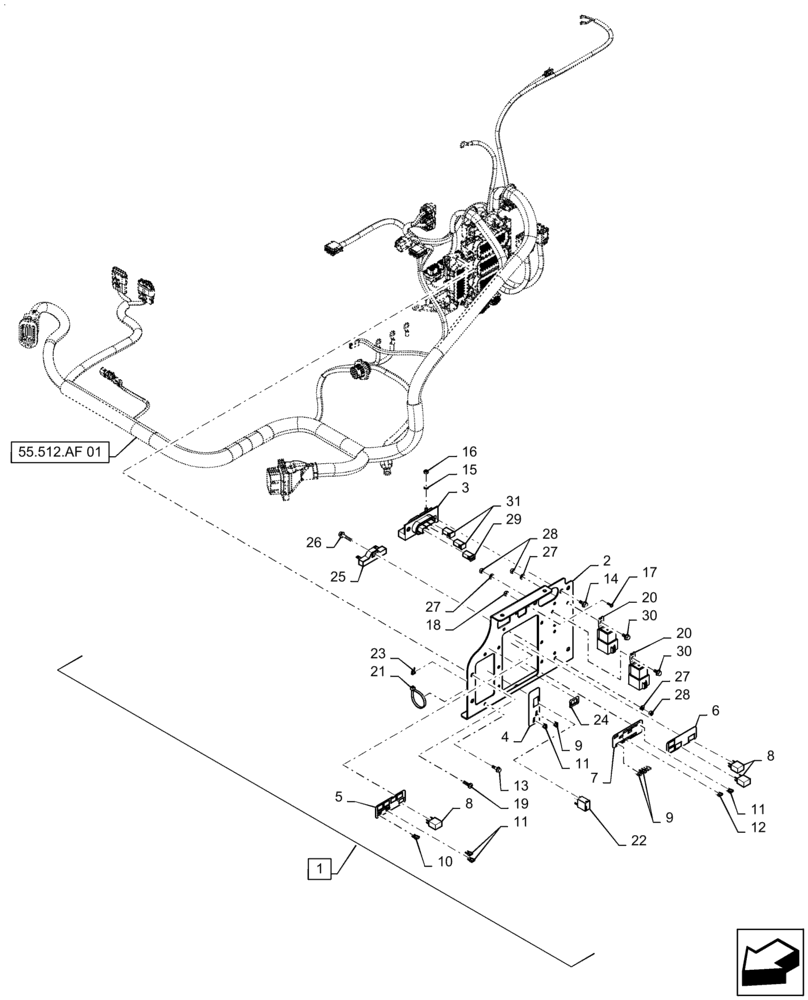

Запчасти Case 750M WT/LGP (55.510.AF[02]) - ROPS, CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47682668

WIRE HARNESS

Incl 2 - 31, Cab Harness

1шт.

2

47393578

PLATE

Fuse and Relay Holder

1шт.

3

84467174

FUSE HOLDER

30A and 25A Fuses

1шт.

4

NSS

NOT SOLD SEPARAT

Label, Fusees Incl in Ref 31

1шт.

5

NSS

NOT SOLD SEPARAT

Label Fuses and Realys Incl in Ref 31

1шт.

6

84290787

DECAL

Label, Fuses Incl in Ref 1

1шт.

7

NSS

NOT SOLD SEPARAT

Label, Fuses Incl in Ref 1

1шт.

8

87696395

RELAY,5-PIN 280 SERIES 24V

Micro 5-Pin 280 Series 24V

10шт.

9

121413A1

FUSE,15A, Mini, Blue

6шт.

10

121412A1

FUSE,10A, Mini, Red

3шт.

11

121411A1

FUSE,7.5A, Mini, Brown

9шт.

12

121410A1

FUSE,5A, Mini, Tan

7шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

14

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

15

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

1шт.

16

825-1406

NUT,M6, Cl 8

1шт.

17

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

18

824-1404

NUT,M4, Cl 5

2шт.

19

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

20

84297432

RELAY,12V, 70A

2шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

22

87655334

RELAY,12V, 35A, Micro

2шт.

23

121414A1

FUSE,20A, Mini, Yellow

1шт.

24

NSS

NOT SOLD SEPARAT

Label, Decal Fuse and Relay INfo, Incl in Ref 31

1шт.

25

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

26

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

27

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

3шт.

28

15896211

NUT,M6, Cl 8

3шт.

29

87327342

FUSE,30 Amp

1шт.

30

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

31

84425139

FUSE,25A, White

32 Volt, 25A

2шт.
