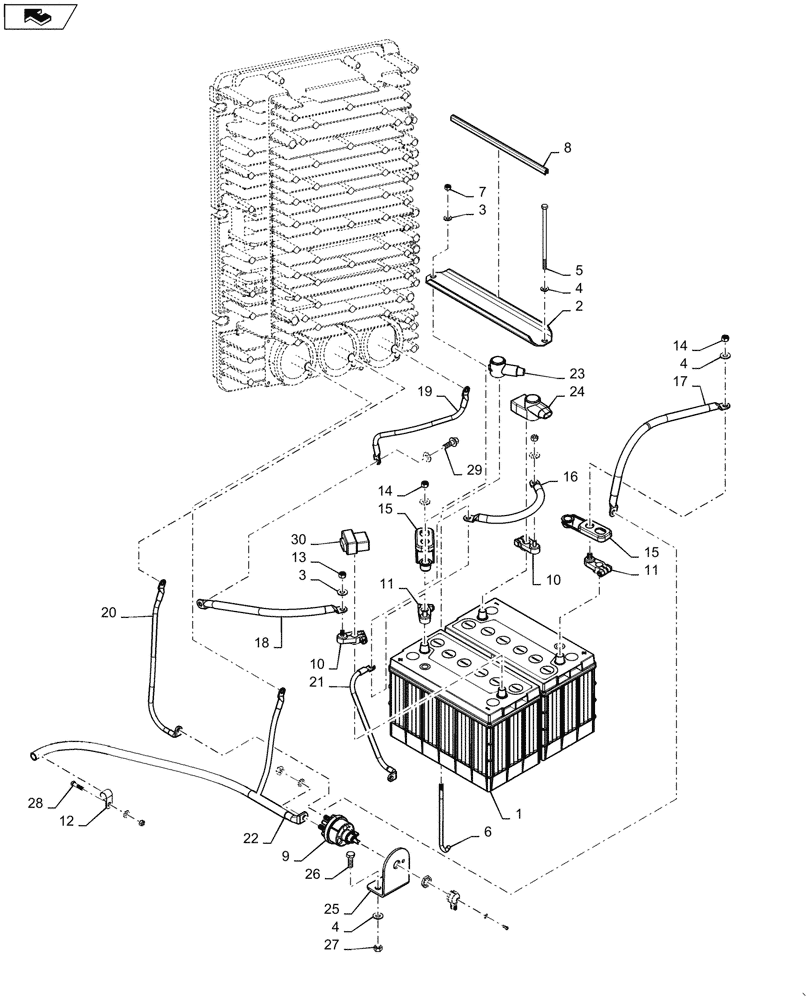

Запчасти Case 750M WT/LGP (55.302.AG[01]) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

1

BMF31EW

WET BATTERY

For US Only

2шт.

1

CCMF31EW

WET BATTERY

For Canada Only

2шт.

2

84601220

CHANNEL

1шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

1шт.

6

416297A1

ROD

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

D40442

MOLDING

2шт.

9

84394622

SWITCH

Battery Disconnect

1шт.

10

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negative

2шт.

11

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive

2шт.

12

515-25254

CLAMP,1", Insul, 1/2" Bolt

3шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

84404107

BOOT

2шт.

16

47420690

NEG BATTERY CABLE

Jumper

2шт.

17

84480481

POS BATTERY CABLE

Battery To Disconnect

1шт.

18

84480488

NEG BATTERY CABLE

Ground

1шт.

19

84480491

NEG BATTERY CABLE

Equalizer Ground

1шт.

20

84480493

POS BATTERY CABLE

Equalizer To Disconnect

1шт.

21

84480492

POS BATTERY CABLE

Battery To Disconnect

1шт.

22

84480489

POS BATTERY CABLE

Disconnect To Starter

1шт.

23

84404114

INSULATOR

1шт.

24

47693869

COVER

Red, Positive

2шт.

25

84486953

BRACKET

1шт.

26

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

28

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

29

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

30

47693868

COVER

Black, Neg

2шт.

31

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.
