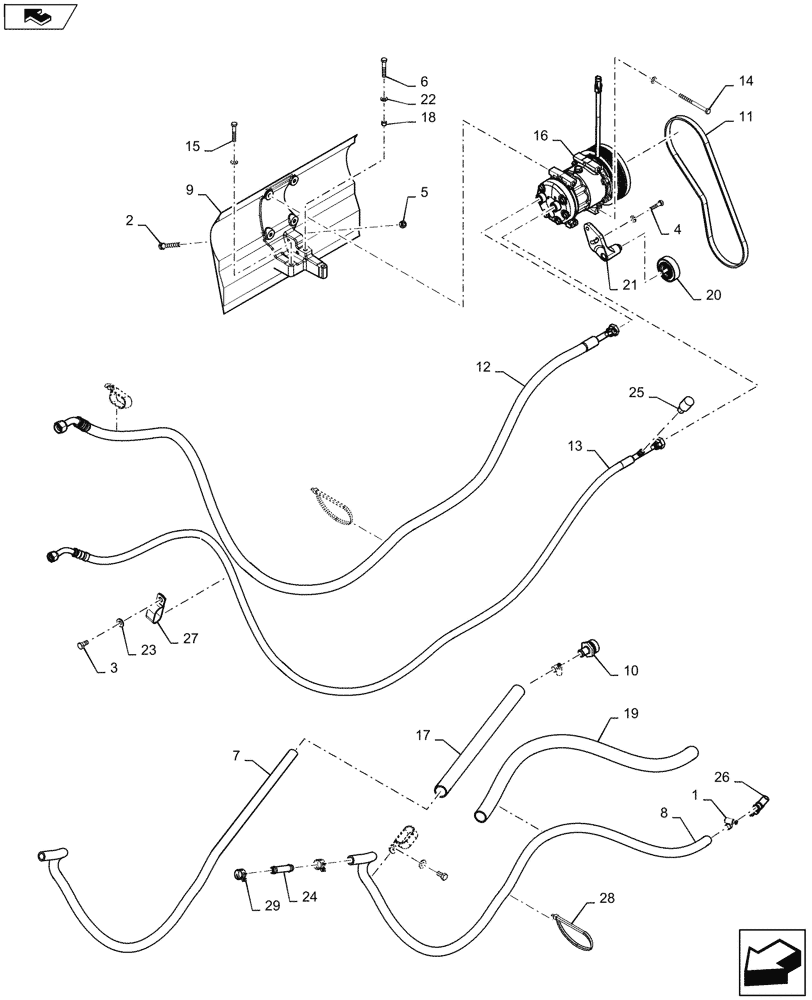

Запчасти Case 750M WT/LGP (55.050.AL[01]) - HEATER, COOLER, COOLER, CAB (55) - ELECTRICAL SYSTEMS

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

4

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

7

84428122

HEATER HOSE

Supply

1шт.

8

84428123

HEATER HOSE

Return

1шт.

9

84492809

BRACKET

AC Mount- Painted

1шт.

10

84498259

STEM

STR BEAD HOSE 5/8 ID X M35X1

1шт.

11

84514633

BELT

COMPRESSOR DRIVE 41 INCH

1шт.

12

84598813

A/C HOSE

Suction

1шт.

13

84598814

A/C HOSE

Discharge

1шт.

14

86512165

BOLT,Hex, M8 x 100mm, Cl 10.9

4шт.

15

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

16

86983968

COMPRESSOR

24V POLY-V(NH 86992689)

1шт.

16

86983968R

REMAN-COMPRESSOR

24V POLY-V

1шт.

16

86983968C

CORE-COMPRESSOR

Return Number

1шт.

17

87350913

CONDUIT

34 OD, 27 ID, 510 Length

1шт.

18

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

8.5 ID, 11.133 OD, 9 Thickness

2шт.

19

87442364

CONDUIT

Bulk Cut To Length 34 OD, 27 ID, 970 Length

1шт.

20

87548073

IDLER

Pulley Assembly

1шт.

21

87551299

SUPPORT

Idler Bracket

1шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

9шт.

23

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

24

1954736C1

HOSE CLAMP,#24

4шт.

25

284273A2

SWITCH, A/C HIGH PRE

A/C Switch

1шт.

26

A16764

VALVE

Heater Hose Return Valve

1шт.

27

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

3шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

NYLON TIE 15 INCH

2шт.

29

S104739

TUBE,0.625" OD x 3" L

2шт.
