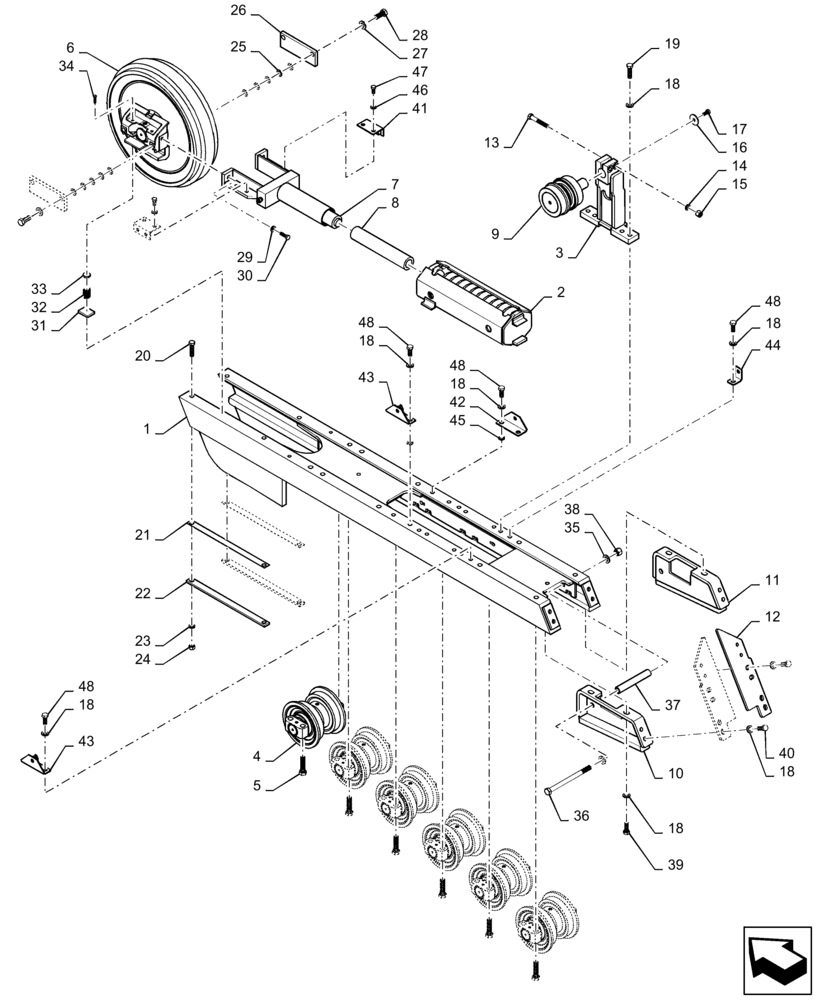

Запчасти Case 750M WT/LGP (48.138.AB[02]) - LH TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

1

47483747

FRAME

1шт.

2

419386A1

HOUSING ASSY.

1шт.

3

47537241

BRACKET

1шт.

4

87581583

ROLLER

6шт.

5

409-91248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

24шт.

6

86987773

FRONT IDLER

1шт.

7

435384A1

YOKE

1шт.

8

84469074

TUBE NUT

1шт.

9

47447083

ROLLER

1шт.

10

47537324

GUIDE

1шт.

11

47537326

GUIDE

1шт.

12

47484761

GUARD

2шт.

13

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

14

496-81004

WASHER,41/64" x 1.047" x .134", HDN

2шт.

15

232-41410

LOCK NUT,5/8"-11, GC

2шт.

16

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

1шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

18

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

23шт.

19

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

4шт.

20

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

21

87559519

SHIM

2шт.

22

87559522

WEAR PLATE

2шт.

23

492-11062

BEARING WASHER,5/8"

4шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

D35268

SHIM,1/32" Thk

20шт.

26

47453616

PLATE

2шт.

27

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

28

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

30

410-9824

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

2шт.

31

106919A1

SPACER

4шт.

32

188866A1

SHOCK ABSORBER

4шт.

33

R33245

SPRING SEAT

4шт.

34

84572784

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/4"

4шт.

35

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

36

9842687

BOLT

1шт.

37

D35698

SPACER

1шт.

38

231-41112

LOCK NUT,3/4"-10, GB

1шт.

39

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

40

409-91024

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

41

87644073

BRACKET

2шт.

42

84469066

PLATE

1шт.

43

84469070

PLATE

2шт.

44

84469076

PLATE

1шт.

45

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

4шт.

46

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

47

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

48

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

7шт.
