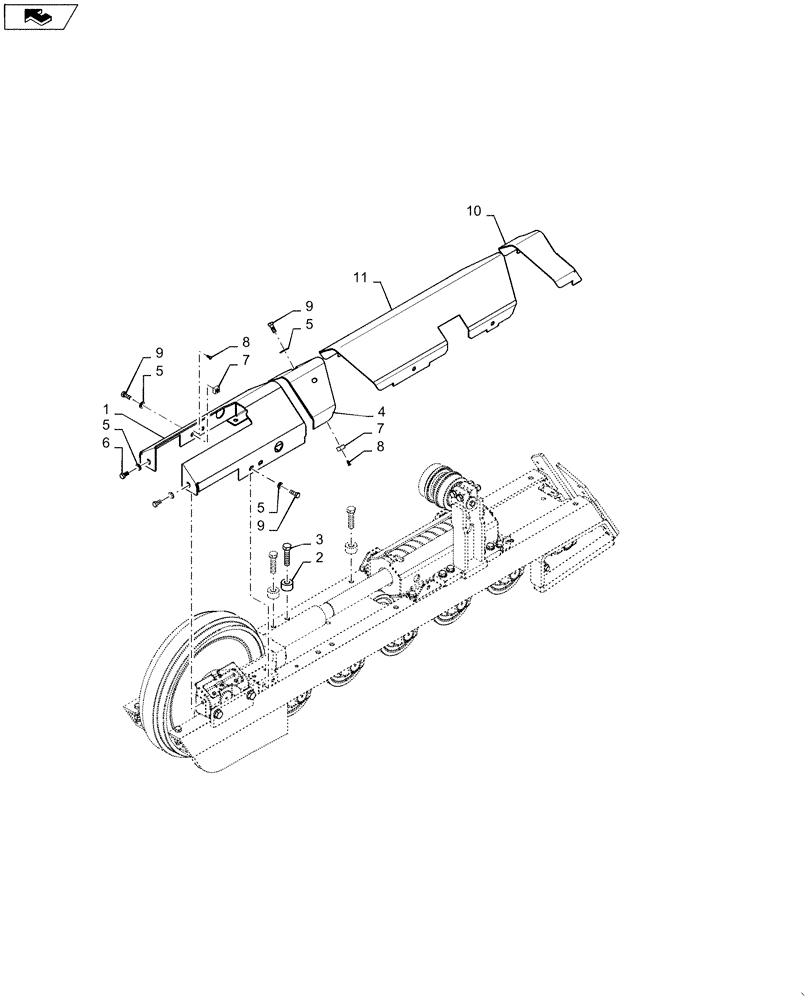

Запчасти Case 750M WT/LGP (48.138.AB[01]) - UNDERCARRIAGE (48) - TRACKS & TRACK SUSPENSION

1

84424208

COVER

Idler

2шт.

2

84424204

SPACER

Track Frame Mount Spacer

20шт.

3

280128

BOLT,Hex, 3/4" - 10 x 3", Gr 8

20шт.

4

47370062

COVER

Front RH

1шт.

4

47370065

COVER

Front LH

1шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

36шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

7

129-857

SQUARE NUT,Sq, 1/2"-13

12шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

12шт.

9

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

24шт.

10

84424212

COVER

Rear

2шт.

11

47373036

COVER

Center RH

1шт.

11

47373031

COVER

Center LH

1шт.
