(48.100.AD[06]) - TRACK CHAIN, 24" CLOSED

Запчасти Case 750M WT/LGP (48.100.AD[06]) - TRACK CHAIN, 24" CLOSED (48) - TRACKS & TRACK SUSPENSION

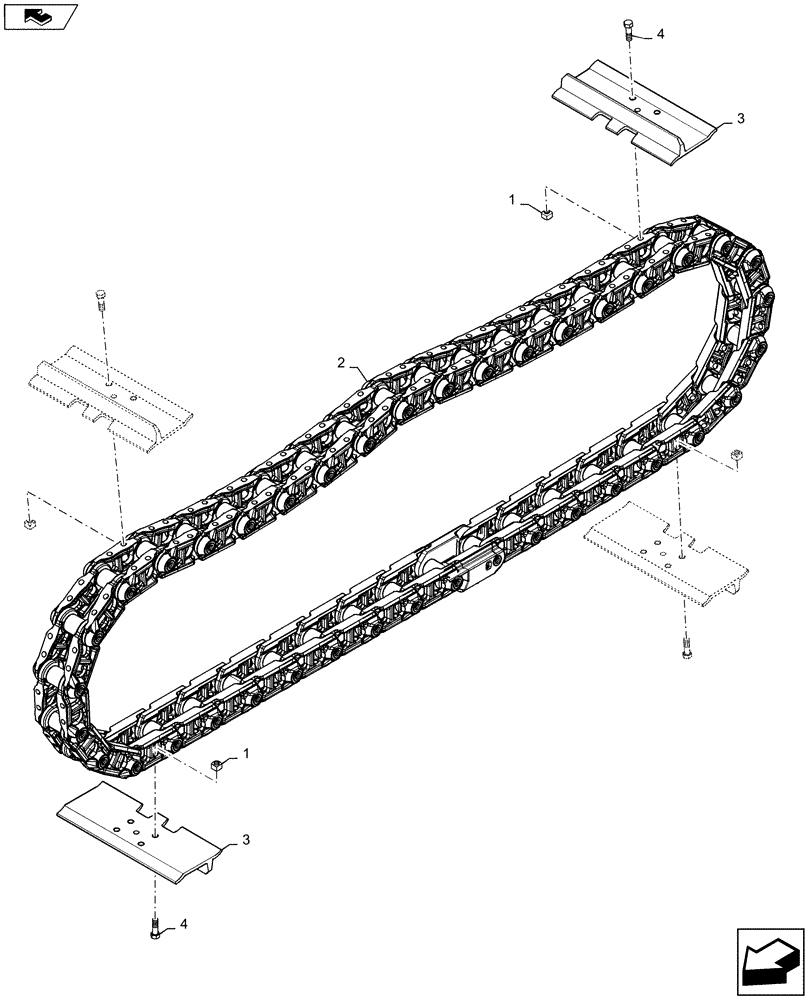

Схема запчастей Case 750M WT/LGP - (48.100.AD[06]) - TRACK CHAIN, 24" CLOSED (48) - TRACKS & TRACK SUSPENSION
4
3
4
3
1
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R25688

SQUARE NUT

5/8" - 18 UNF GRade8 Square Nut

152шт.

2

407017A1

TRACK CHAIN

39 Link CLT Chain Assembly

1шт.

3

295182A1

SHOE

One Bar Closed Shoe

39шт.

4

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8" Special Track Bolt

152шт.
