(48.100.AD[03]) - TRACK CHAIN, 28" OPEN

Запчасти Case 750M WT/LGP (48.100.AD[03]) - TRACK CHAIN, 28" OPEN (48) - TRACKS & TRACK SUSPENSION

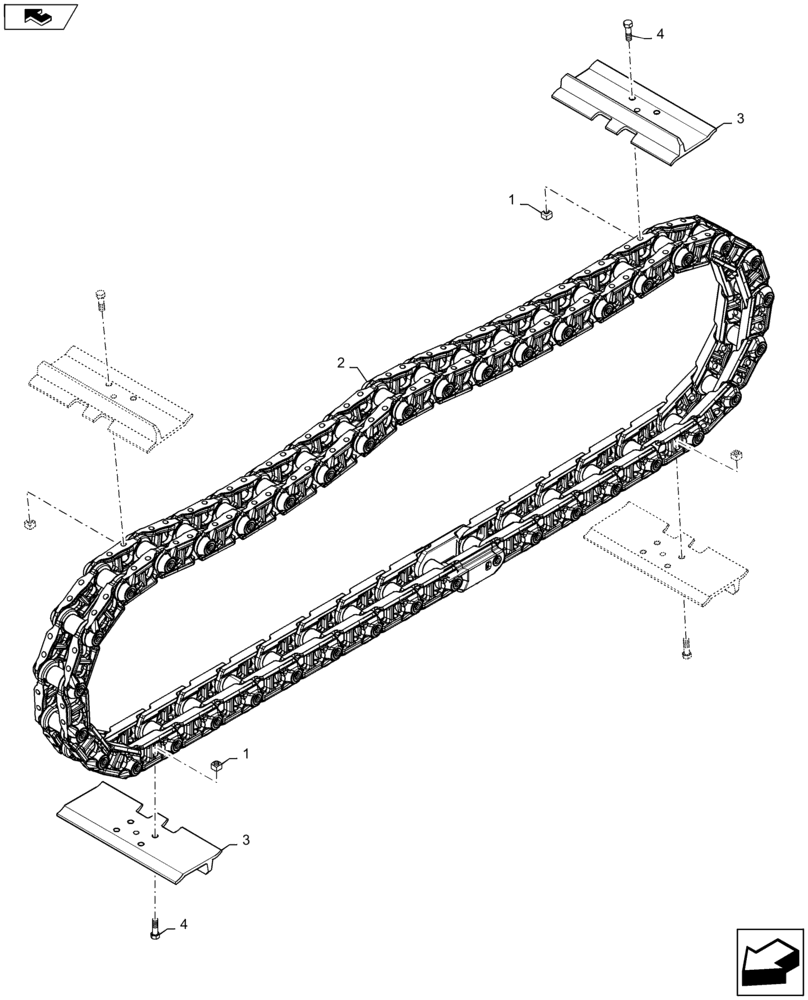

Схема запчастей Case 750M WT/LGP - (48.100.AD[03]) - TRACK CHAIN, 28" OPEN (48) - TRACKS & TRACK SUSPENSION
3
home
2
1
1
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R25688

SQUARE NUT

5/8" - 18 UNF GRade 8 Square Nut

152шт.

2

407020A1

TRACK CHAIN

39 Link CELT Chain Assembly

1шт.

3

328946A1

TRACK SHOE

One Bar Open 18" Track Shoe

39шт.

4

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8" Special Track Bolt

152шт.
