Запчасти Case 750M WT (55.518.010) - WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS

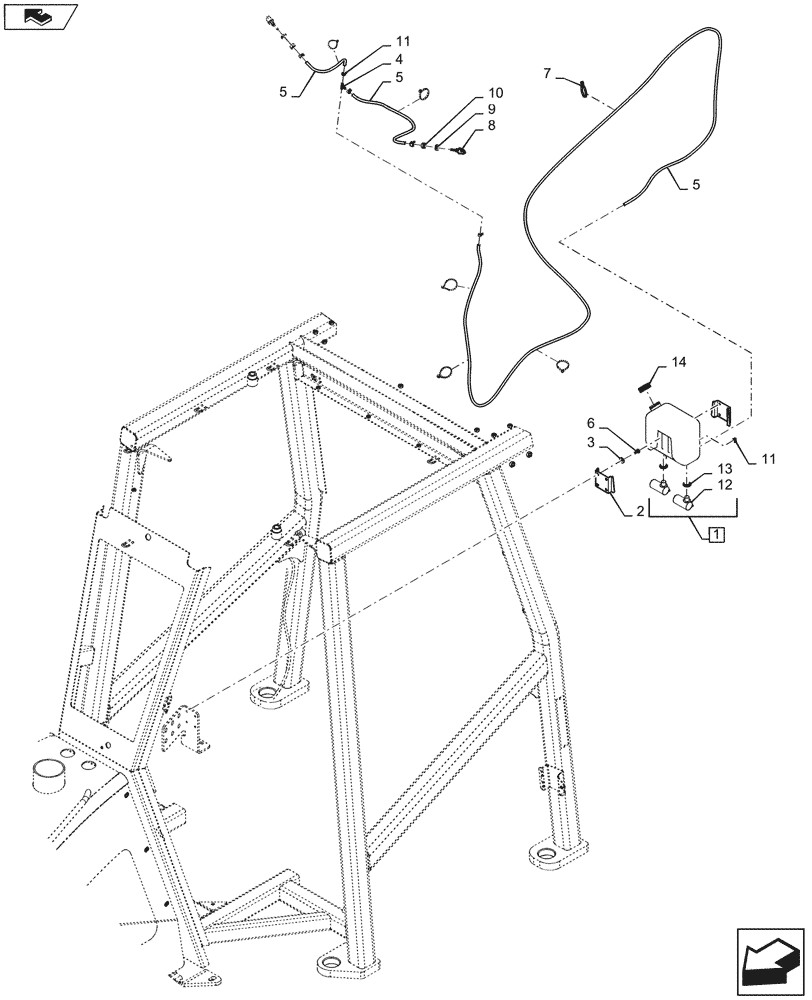

Схема запчастей Case 750M WT - (55.518.010) - WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS
5
9
2
5
6
home
5
8
14
13
11
4
1
7
3
12
11
10

Артикул

Название

Примечание

Количество

1

84293452

RESERVOIR, WINDSHIEL

Tank, Incl 12 - 14

1шт.

2

5155855

BRACKET

Wiper Tank Mounting

1шт.

3

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

4

87427778

FITTING,3/16"

Tee, Hose

1шт.

5

87282056

HOSE,3.56mm ID x 15240mm L

50FT Bulk Roll, Cut to Length

1шт.

6

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

8

284154A1

NOZZLE,3/8" - 16

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

305578A1

CLAMP,7.65mm - 8.76mm

6шт.

12

NSS

NOT SOLD SEPARAT

Reservoir Fluid Pumps, Incl in 1

2шт.

13

NSS

NOT SOLD SEPARAT

Reservoir Tank Gaskets, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Reservoir Tank Cap, Incl in 1

1шт.

Выбрано товаров: 14
