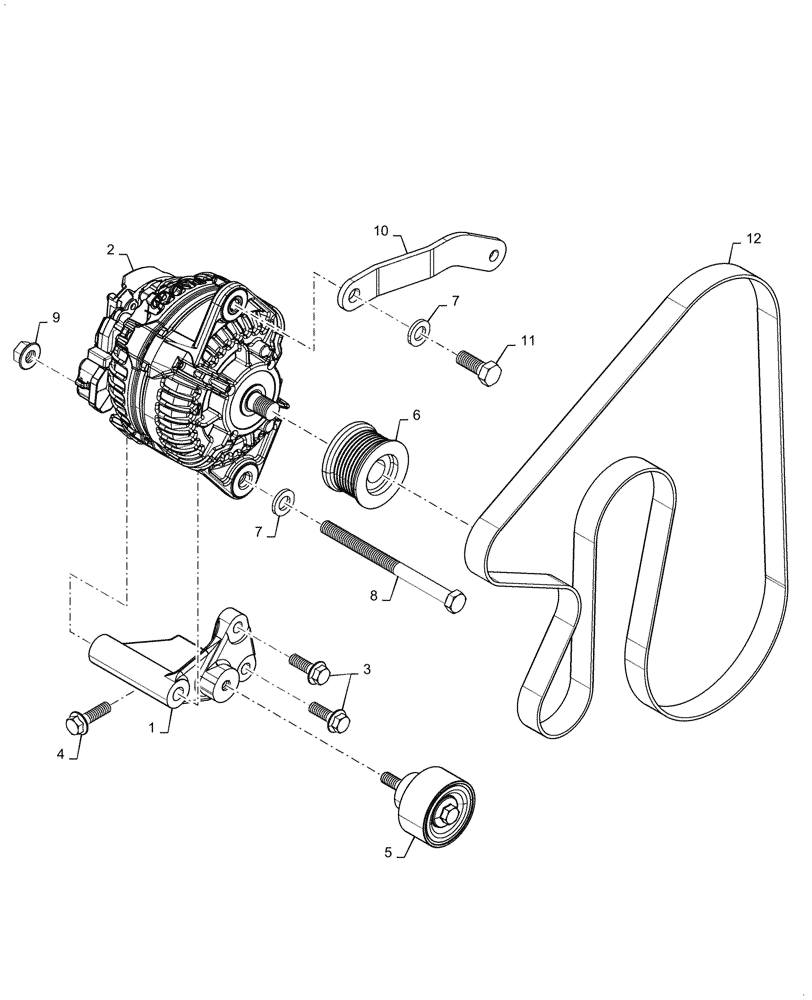

Запчасти Case 750M WT (55.301.010) - VAR - 784818 - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

84481212

BRACKET

Alternator

1шт.

2

84383847

ALTERNATOR,24V, 120A

1шт.

3

87778358

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

2шт.

4

87015906

BOLT

1шт.

5

2852398

IDLER WHEEL,65mm OD

1шт.

6

84409052

PULLEY,66mm OD

1шт.

7

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

8

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

9

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

10

47375095

BRACKET

1шт.

11

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

12

47429232

BELT

Serpentine

1шт.
