(48.100.030) - VAR - 784786 - CRAWLER TRACK ASSY, 39 LINK 28" 1 BAR CLOSED, SALT HD

Запчасти Case 750M WT (48.100.030) - VAR - 784786 - CRAWLER TRACK ASSY, 39 LINK 28" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION

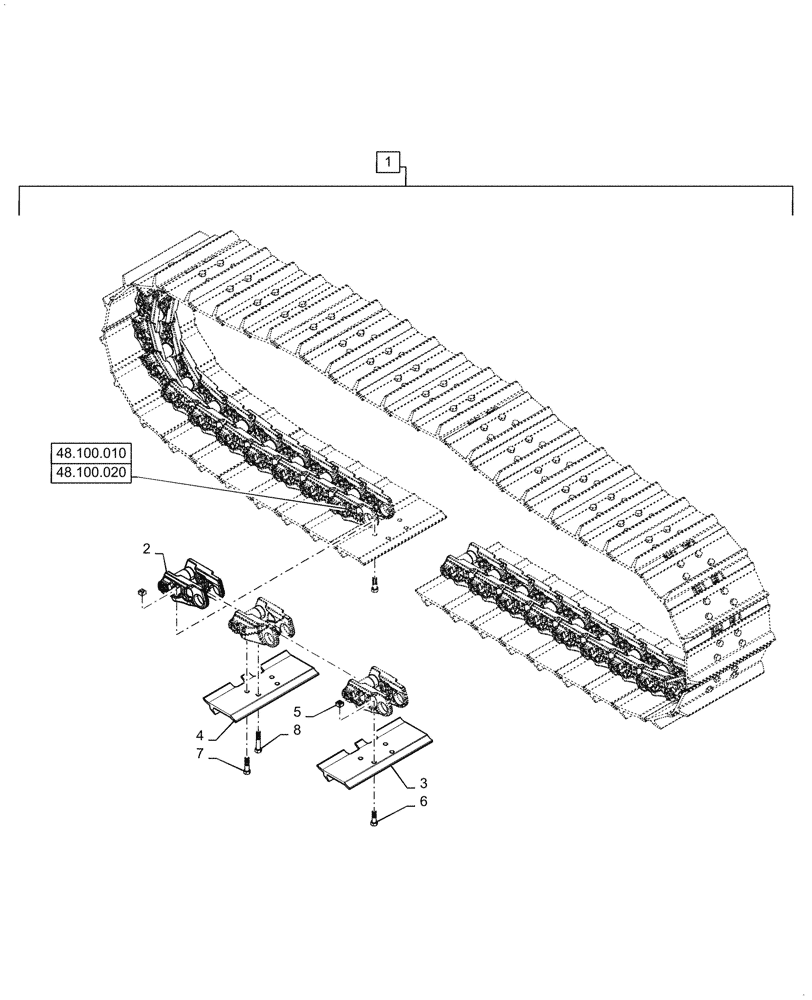

Схема запчастей Case 750M WT - (48.100.030) - VAR - 784786 - CRAWLER TRACK ASSY, 39 LINK 28" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION
48.100.020
7
6
3
1
48.100.010
2
5
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945272

CRAWLER TRACK ASSY

39 Link, 28" 1 Bar Closed, Salt HD, Incl 2 - 7

1шт.

2

47959365

TRACK CHAIN

39 Link, SALT HD

1шт.

3

47960103

TRACK SHOE

28" 1 Bar, Closed

38шт.

4

47960107

TRACK SHOE

Master, 28" 1 Bar, Closed

1шт.

5

47958235

SQUARE NUT

Track Shoe

152шт.

6

47958236

BOLT

Track Shoe

152шт.

7

47958237

BOLT

Master Track Shoe

4шт.
