(48.100.020) - VAR - 784785 - CRAWLER TRACK ASSY, 39 LINK 24" 1 BAR CLOSED, SALT HD

Запчасти Case 750M WT (48.100.020) - VAR - 784785 - CRAWLER TRACK ASSY, 39 LINK 24" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION

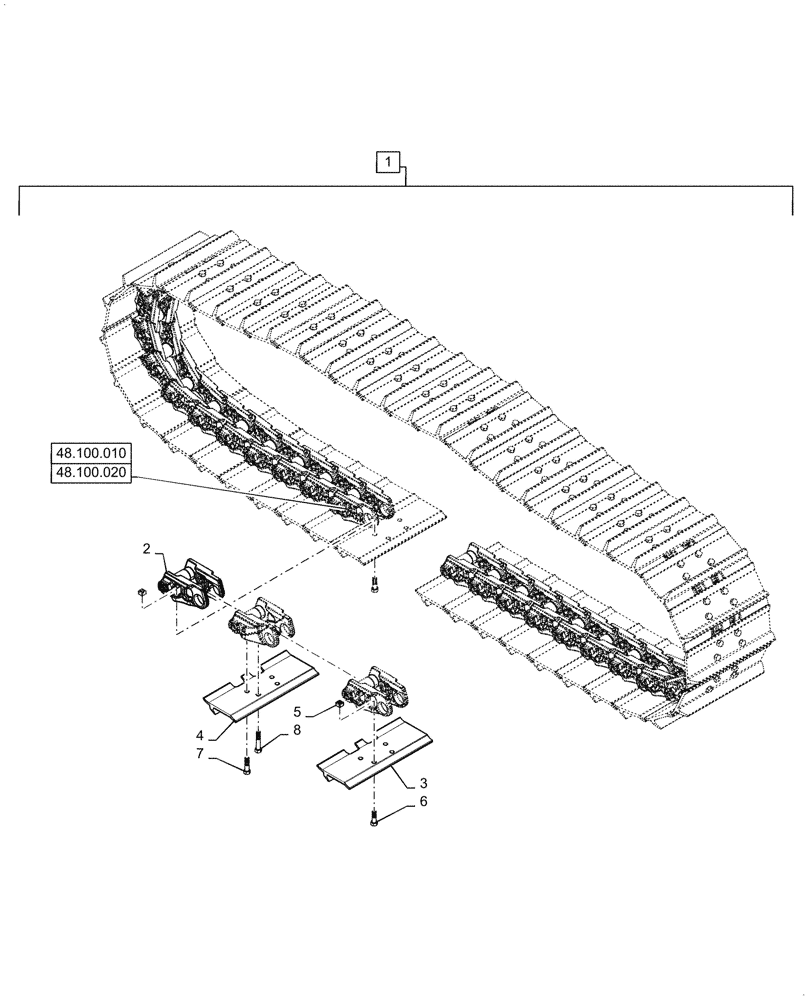

Схема запчастей Case 750M WT - (48.100.020) - VAR - 784785 - CRAWLER TRACK ASSY, 39 LINK 24" 1 BAR CLOSED, SALT HD (48) - TRACKS & TRACK SUSPENSION
3
8
4
7
1
2
6
5
48.100.010
48.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945271

CRAWLER TRACK ASSY

39 Link, 24" 1 Bar Closed, Salt HD, Incl 2 - 8

1шт.

2

47959365

TRACK CHAIN

39 Link, SALT HD

1шт.

3

47960102

TRACK SHOE

24" 1 Bar, Closed

38шт.

4

47960106

TRACK SHOE

Master, 24" 1 Bar, Closed

1шт.

5

47958235

SQUARE NUT

Track Shoe

152шт.

6

47958236

BOLT

Track Shoe

152шт.

7

47958237

BOLT

Master Track Shoe

4шт.
